Atlas Copco PF3107-G-DN-HW Controller Driver Device

Atlas Copco PF3107-G-DN-HW Controller Driver Device

Product Details Introduction

1、 Product Overview

Atlas Copco PF3107-G-DN-HW is an intelligent power tool controller drive device for the mid to high torque range in the Power Focus 3100 series. It is used to drive and control the Atlas Copco Tensor series electric tightening tools, achieving high-precision and high consistency torque and angle control. It also has industrial bus communication and multi program control capabilities, and is widely used in modern industrial assembly lines.

Model analysis:

PF3107: PF3100 series, suitable for medium power tools

G: Advanced control version, supporting more complex processes and communication

DN: Built in DeviceNet communication module, compatible with Allen Bradley, Omron and other PLCs

HW: Standard hardware configuration

2、 Technical parameters

Project parameters

Control mode: torque control/angle control/angle monitoring/multi-stage control

Power input AC 100-240V, 50/60Hz, adaptive

Communication protocols DeviceNet (built-in), Ethernet RS232、 Digital I/O

Support tools such as Tensor ST, SL, EBL, ETX, STR, and other electric tools in the torque range

Maximum number of supported programs ≥ 255

Data recording supports local data storage, curve collection, and traceability functions

Program switching supports remote signal switching/barcode scanner/workstation recognition

3、 Typical application areas

1. Automotive manufacturing and final assembly

Bolt tightening station for powertrain, chassis, and steering system

Linkage with PLC and MES to achieve quality traceability and workstation binding

2. New energy vehicles and power battery industry

Application of high consistency torque control in battery casing, electronic control system, and electric drive assembly

Collaborate with robots to perform automatic tightening operations

3. Industrial automation and robot assembly station

Integrate with the robotic arm end to perform multi angle/multi-stage tightening tasks

Automatic program selection triggered by image recognition or workstation positioning

4. Construction machinery and rail transit

Provide multi-stage composite control for the tightening process of heavy-duty connection parts

Stable and reliable continuous operation in high-intensity environments

5. Home appliances and electrical assembly

Support flexible switching of multiple process programs, suitable for fast assembly tasks within the medium torque range

Full record of tightening results, meeting quality audit requirements

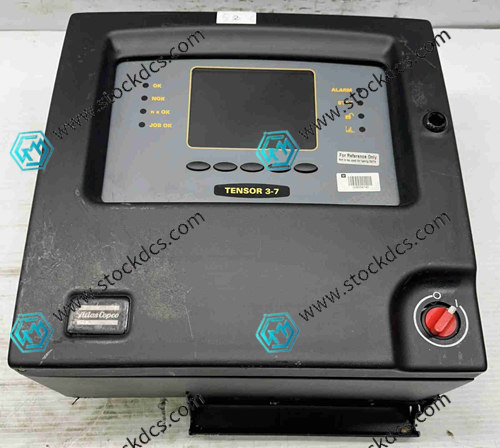

Product imag
