Product Details Introduction

Basic information

Model: IC693MDL753K

Brand: GE Fanuc

Series: Series 90-30 PLC

Module type: Digital output module (DC output)

Number of channels: 32 points

Output type: DC source output (sourcing type)

Technical Parameter

Output points: 32 points

Output voltage range: 5VDC to 30VDC (nominal 24VDC)

Output type: Sourcing (PNP) - the module provides current to the load

Maximum output current: 0.5A per point, maximum 4A for the entire module

Surge current capability: Supports 1A per point (continuous for 10ms)

Response time: typically<0.5ms for activation and disconnection

Output protection: Short circuit protection, overload protection, over temperature protection

Channel grouping: 4 groups, 8 points per group, separate common end (COM)

Status indication: Each point is equipped with LED indicator lights

Electrical isolation: Each group of 8 points is isolated from each other (1500V)

Wiring instructions (textual description)

The module provides a positive voltage (+V) to the load, with the other end of the load connected to the common terminal (COM).

Every 8 o'clock is a group, each with an independent common terminal that can be connected to the negative terminal of the system or the control ground.

Recommend using an external 24VDC power supply connected to the V+input of the module.

When connecting, it should be noted that the current of the load cannot exceed the maximum current limit of a single point or the entire group.

Precautions for use

Source Output Module (PNP): The module provides power to the load and is not suitable for devices that require NPN (Sink) input.

Note that the current limit at each point is 0.5A to avoid overcurrent burnout.

The overall maximum output current is 4A, and the load is distributed reasonably.

If a short circuit occurs, the internal protection of the module will cut off the output, but it is recommended to add a fuse externally.

The wiring time is divided into groups of common terminals (COM) to avoid misconnection or cross group short circuits.

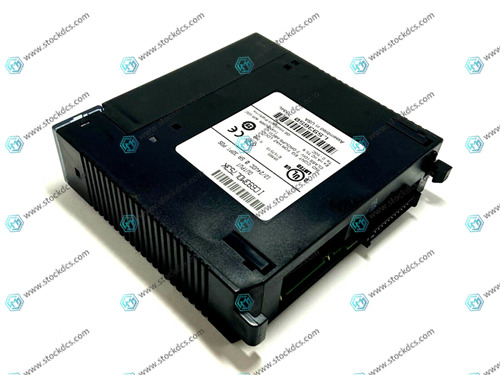

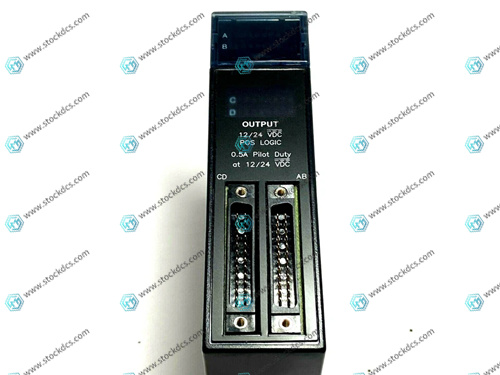

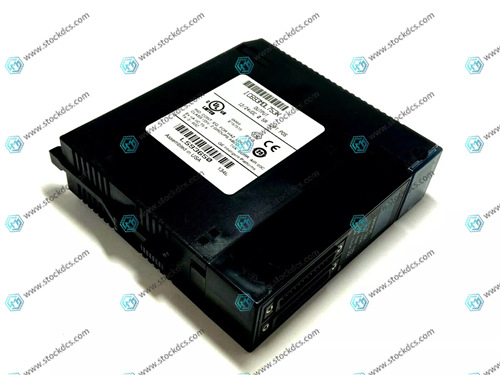

Product imag
