193X267BAG01 regulating board

193X267BAG01 regulating board

Product Details Introduction

The GE 193X267BAG01 Regulation Board is a key module in the GE 193X series control system, mainly used for regulating, amplifying, filtering, and stabilizing voltage, current, or other analog signals. This regulating board is widely used in DC drive control systems, power generation systems, metallurgical and chemical automation systems, ensuring accurate and stable signal processing of various modules within the system.

1、 Product Overview:

Product model: 193X267BAG01

Type: Regulation Board

Series affiliation: GE 193X Control Platform

Function: Signal conditioning, amplification, stabilization, and filtering

2、 Main functions:

signal conditioning

Adjust various analog signals (such as current, voltage, frequency signals, etc.) in the system to meet the requirements of the control system. These adjustments may include amplitude adjustment, offset adjustment, and sensitivity adjustment.

signal amplification

Amplify weak signals to a level suitable for system use, ensuring that the system can accurately respond to input signals.

Filtering and noise suppression

Filtering the input signal to remove high-frequency noise and interference, ensuring signal purity and reliability, especially suitable for industrial environments with high noise levels.

System stability enhancement

By adjusting the stability of signals such as voltage and current, system failures or malfunctions caused by unstable signals can be prevented.

Precise control feedback

Adjust and amplify the feedback signal to ensure the stability and response speed of the feedback loop in precision control such as speed regulation and excitation.

3、 Application areas:

Industry application scenarios

The power generation industry regulates the output voltage, current, and other signals of generators to ensure stable power supply.

Signal regulation is carried out in the motor drive system of steel metallurgy to ensure the accuracy of motor response.

Chemical automation finely adjusts sensor signals in chemical reaction control.

The matching between rail transit signal regulation and electrical system ensures stable operation of equipment.

The automated production line adjusts various sensor feedback signals to ensure precise control of the production line.

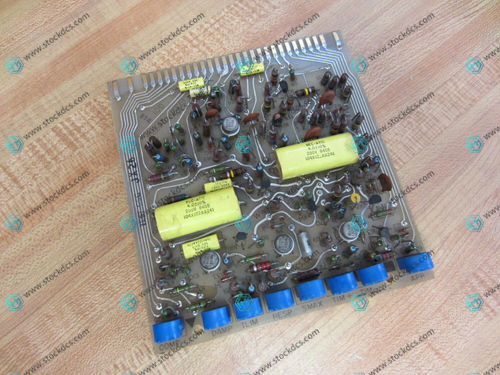

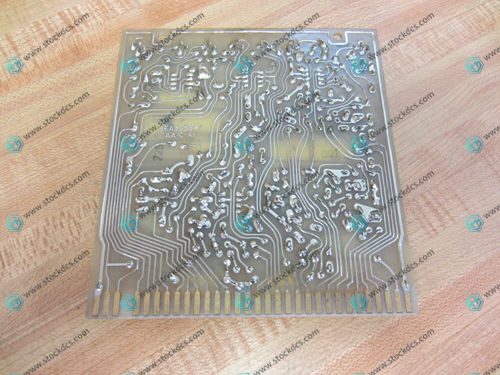

Product imag
