TEL CX81-050032 Interface Board

TEL CX81-050032 Interface Board

 Introduction

#TEL CX81-050032 Interface Board

1. Model: TEL CX81-050032, dedicated signal interface board for semiconductor equipment

2. Realize the signal docking and conversion between the main control board and various sub modules on site

3. Collecting and distributing multiple IO signals to achieve signal level matching

4. Built in signal filtering to reduce electromagnetic interference in the cabinet

5. Collecting sensor and actuator status feedback to the main control

6. Adapt to original communication timing of TEL equipment

7. Optoelectronic isolation design to prevent crosstalk between high and low voltage circuits

8. Capable of identifying and detecting signal link faults

9. Industrial grade components, suitable for long-term continuous operation of cabinets

10. Onboard status indicator light, quickly troubleshoot signal abnormalities

11. Locking type connector to avoid poor contact caused by vibration

12. Standardized interface, can directly replace original board components

13. Forwarding control instructions to drive external devices such as valves and motors

14. Plug in installation, easy disassembly, maintenance and repair

15. Suitable for use in etching and deposition semiconductor machines

In summary, the TEL CX81-050032 interface board serves as a signal relay component to ensure reliable transmission and interaction of internal signals within the entire machine.

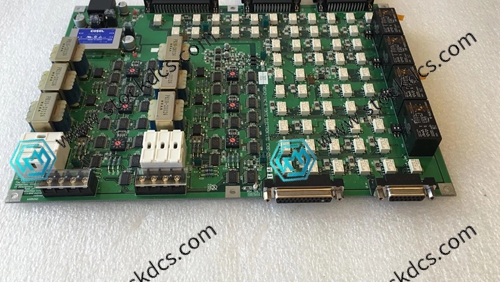

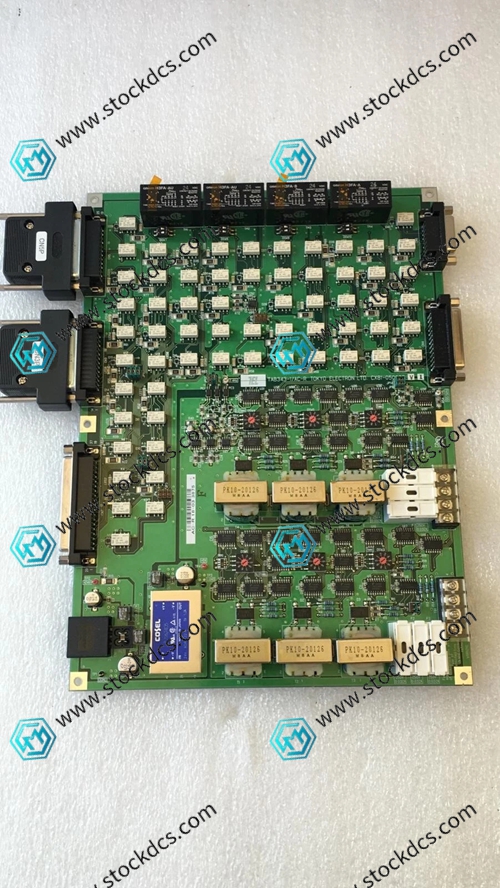

Product imag
