TOKHEIM 947802-004 Control Board

TOKHEIM 947802-004 Control Board

 Introduction

#TOKHEIM 947802-004 Control Board

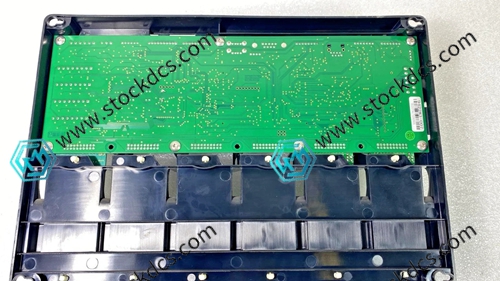

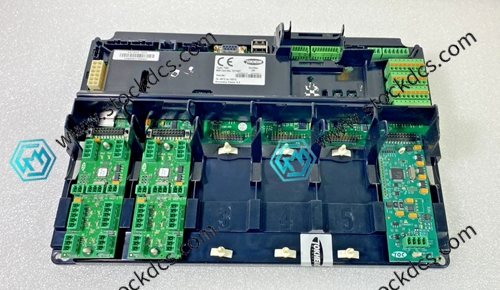

1. Model: TOKHEIM 947802-004, dedicated main control board for fuel dispenser equipment

2. Responsible for overall process control and measurement data processing work

3. Receive button commands and control the start and stop of the oil outlet solenoid valve

4. Collect pulse signals from flow meters and complete the conversion of oil quantity measurement

5. Realize data output and interaction of display panel

6. Adapt to TOKHEIM fuel dispenser communication protocol

7. Built in overcurrent protection to reduce damage to the board caused by load faults

8. Hardware filtering to resist electromagnetic interference in the on-site environment

9. Store transaction data and support querying measurement records

10. Capable of fault self checking and outputting corresponding fault codes

11. Wide temperature components, suitable for outdoor cabinet temperature difference conditions

12. Standardization of interfaces, integration with measurement and display peripherals

13. Control the oil output logic and achieve anti cheating metering control

14. Plug in terminal structure, easy to disassemble, repair and replace

15. Support saving of machine parameter configuration, easy replacement and debugging

In summary, the TOKHEIM 947802-004 control board is the core main control component of the fuel dispenser, ensuring the reliable operation of the entire process of metering and dispensing.
