Vicor VP-F1598186E Switching Power Supply Module

Vicor VP-F1598186E Switching Power Supply Module

 Introduction

Vicor VP-F1598186E Switching Power Supply Module

1. Vicor VP-F1598186E adopts a zero current switching architecture, with low switching losses and high overall power conversion efficiency

2. Excellent power density, compact overall structure of the body, and small installation space inside the cabinet

3. The working temperature range is wide, and stable operation can be achieved in environments ranging from minus 40 degrees Celsius to 95 degrees Celsius

4. Built in automatic protection mechanism for overvoltage, overcurrent, overheating, and short circuit, promptly locking the output in case of abnormalities

5. The input and output are designed with electrical isolation to block high and low voltage interference, resulting in higher circuit safety

6. Low output voltage ripple noise, providing stable power supply for precision industrial control boards and sensing components

7. Support parallel operation of multiple modules, stack overall output power as needed, and have a simple expansion method

8. Adopting a screw fixed installation method, the assembly is firm and not easily displaced or loosened under vibration conditions of the equipment

9. Equipped with remote voltage sampling function, it can compensate for the voltage drop caused by long-term power supply

10. Internal circuit layout optimization, low external electromagnetic radiation, suitable for dust-free precision workshop environment

11. Equipped with hardware status detection, it provides intuitive feedback on operational faults, making it convenient for on-site maintenance and troubleshooting

12. The thermal conductivity design of the shell is reasonable, and the natural heat dissipation effect is good. There is no need to install an additional radiator under normal working conditions

13. Suitable for industrial DC input power supply, able to withstand small daily voltage fluctuations, and not easily trip during operation

14. The selection of internal components is durable and can meet the requirement of uninterrupted long-term power operation of equipment 24/7

15. Standardized hardware specifications can be directly matched with corresponding industrial control machines for installation and use, without the need for significant circuit modification

Vicor VP-F1598186E is an industrial grade high-density isolated switch power module, commonly used for stable power supply in semiconductor precision equipment and industrial control systems.

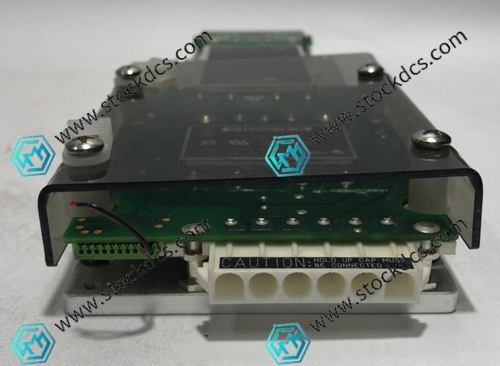

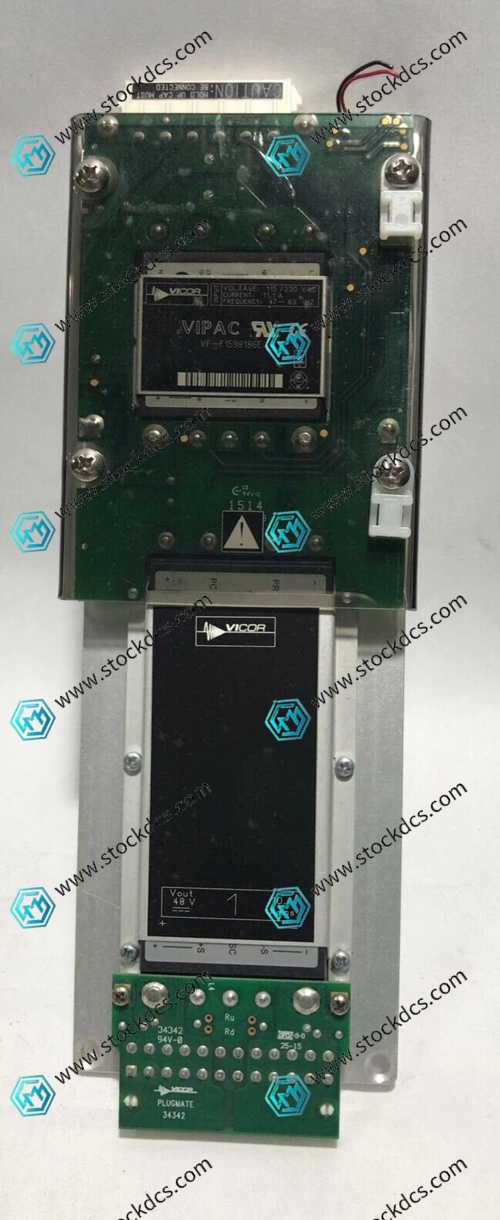

Product imag
