TRICONEX AT-2701FX (843-000844-00) Network Interface Module

1、 Basic Information

Model: AT-2701FX

Part number: 843-000844-00

Type: Industrial Ethernet Network Interface Card

Manufacturer: TRICONEX (under Schneider Electric)

Interface type: Fiber Ethernet interface, supporting 100Base FX (full duplex)

2、 Technical parameters

Interface speed: 100 Mbps

Interface standard: IEEE 802.3u 100Base FX

Interface type: SC fiber optic interface

Bus type: PCI (32-bit, 3.3V or 5V compatible)

Transmission medium: multimode optical fiber

Maximum transmission distance: 2 kilometers (typical)

Compatible system: Suitable for the TRICON control system (mainly used for the TRICON v9/v10 platform)

Working temperature range: 0 ℃ to 60 ℃

Storage temperature range: -40 ℃ to 85 ℃

Humidity range: 10% to 90% (without condensation)

3、 Functional purpose

This module is used to connect the TRICONEX controller to an external industrial Ethernet network, supporting high-speed and anti-interference data communication. It is commonly used for:

Controller interconnection in Safety Instrumented System (SIS)

Real time data exchange between engineering workstations and control systems

Communication link of redundant system

4、 Reliability and Certification

Supports hot swapping

Compliant with CE and UL industrial certifications

Support for use in SIL3 security systems (according to IEC 61508 standard)

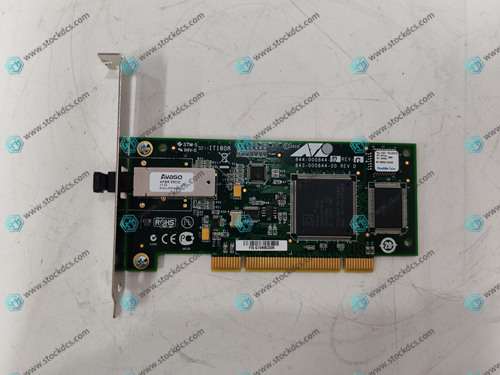

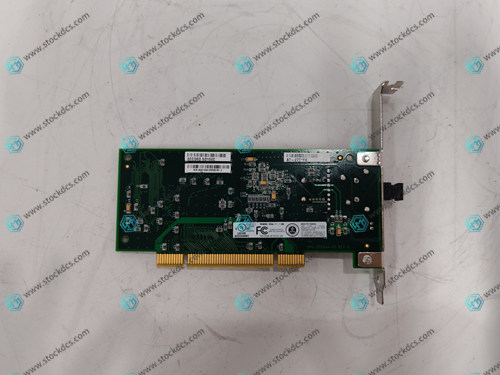

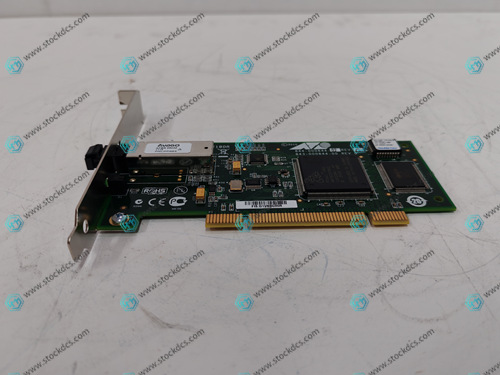

Product imag
