193X706AAG01 Buffer Amplifier Card

193X706AAG01 Buffer Amplifier Card

Product Details Introduction

GE 193X706AAG01 Buffer Amplifier Card Technical Data

Product model: 193X706AAG01

Product Name: Buffer Amplifier Card

Manufacturer: General Electric (GE)

Series: 193X series control board

Function classification: Signal Buffering and Amplification Module

Application areas: Industrial control, data acquisition and processing systems

1、 Function Description

The GE 193X706AAG01 buffer amplifier card is a signal processing module designed specifically for GE industrial automation systems. Its main function is to enhance and amplify input signals to meet the input requirements of the system, and provide signal buffering to ensure stable signal transmission. This card is widely used in control systems that require signal gain or buffering, such as PLC control systems, industrial drive control, process control, and other fields.

2、 Main technical parameters

Parameter item description

The input signal type is analog signal (such as voltage, current signal), commonly ranging from 0-10V, 4-20mA, etc

Output signal type: amplified analog signal, usually 0-10V or other standard voltage/current output

The amplification gain is fixed or adjustable, usually 1x, 10x, 100x, etc., depending on the design of the card

Signal isolation has electrical isolation between input and output to prevent signal interference or high voltage from affecting the system

Power supply voltage ± 15V DC or 24V DC (according to system power supply standards)

The working temperature range is usually -40 ° C to+85 ° C, suitable for industrial environments

Connection method plug-in card, compatible with GE 193X series control rack

Card size standard GE plug-in card module size, in accordance with the 193X series format

The input/output interface type is usually a terminal block or pin interface, used to connect external devices or sensors

3、 Application scenarios

Industrial automation control: As a relay and amplification module for signals in control systems, it ensures the accuracy and stability of system signals;

PLC and DCS systems: provide buffering and amplification of input signals to ensure that downstream modules can receive appropriate signals;

Process control system: used for gain adjustment during signal transmission to ensure that the signal adapts to the input requirements of different devices;

Instrumentation system: Enhance measurement signals and provide high-precision data acquisition;

Drive and motor control: Used in conjunction with sensors, frequency converters, and other equipment to achieve precise amplification and transmission of signals.

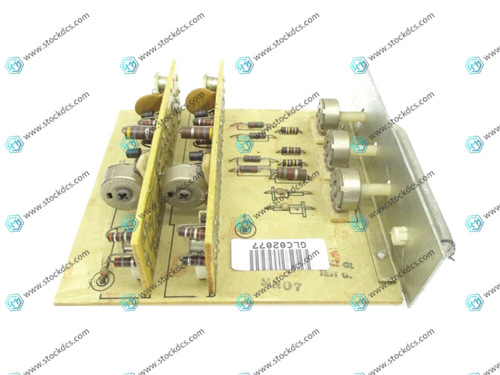

Product imag
