Siemens 6ES7214-1BD23-0XB0 CPU module

Siemens 6ES7214-1BD22-0XB0 Controller Module

Product Details Introduction

Siemens 6ES7214-1BD23-0XB0 is a CPU 224 DC/DC module in the SIMATIC S7-1200 series. This CPU module is designed specifically for small and medium-sized automation control systems and is widely used in fields such as industrial automation, building management, and process control.

Main technical specifications:

Type: SIMATIC S7-1200 CPU 224 DC/DC/DC

Input/output points:

14 digit inputs

10 digital outputs (transistor output)

Power supply voltage:

Working voltage: 20.4 V to 28.8 V DC

Power type: Suitable for DC power supply system

Storage capacity:

Program memory: 24 KB

Data storage: 10 KB

Communication interface:

1 RS-485 interface, supporting PPI (point-to-point communication), MPI (multi-point communication), and free port mode

Output type: transistor output, suitable for high-speed switch control

Instruction execution time: The basic instruction execution time is 0.22 microseconds per instruction, supporting real-time control

Scalability: Supports up to 7 expansion modules, increasing the number of input and output points or functional modules according to requirements

Operating temperature: Suitable for industrial environments ranging from 0 ° C to 60 ° C

Functional features:

Compact design: This module is designed to be compact and suitable for use in environments with limited space, with high-density I/O points.

High speed response capability: Using transistor output, it can achieve fast switching, which is very suitable for controlling devices that require frequent switching.

Powerful storage capacity: sufficient program and data storage capacity to support complex control logic and algorithms.

Flexible communication capability: The RS-485 interface supports multiple protocols and can easily communicate with other PLCs, HMIs, and smart devices.

Scalability: By expanding modules, I/O points can be flexibly increased or other functions can be integrated to meet different application needs.

Efficient execution speed: Fast instruction execution time enables it to efficiently handle real-time control tasks.

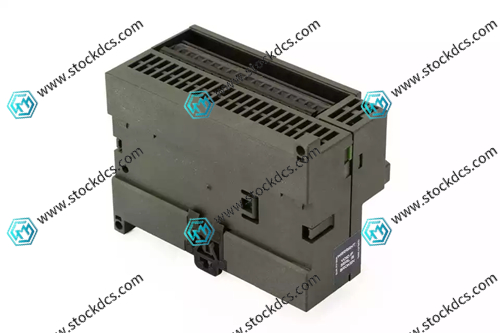

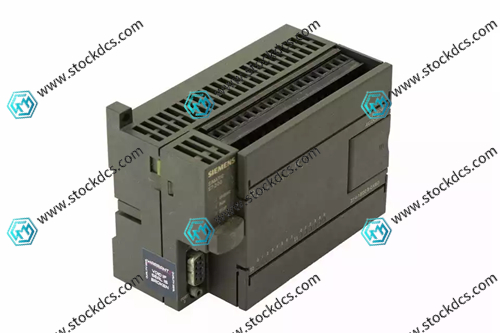

Product image
