GIDINGS&LEWIS 502-03518-03 Analog Output Module

GIDINGS&LEWIS 502-03518-03 Analog Output Module

Product Details Introduction

GIDINGS&LEWIS 502-03518-03 Analog Output Module

Product Features

Product Overview

Giddings&Lewis 502-03518-03 is an analog output module in the PiC900 control system series, mainly used to convert digital control signals into high-precision voltage analog signals to drive servo, process control, and various industrial automation execution devices. This module provides stable multi-channel output, suitable for applications that require high accuracy and response speed.

Technical Specifications

Number of channels: 8 analog outputs

Output range: ± 11 V DC (nominal ± 10 V)

Resolution: 16 bits (65536 steps)

Maximum output current: ± 10 mA

Output update interval: 32 µ s

Output accuracy: ± 5% (within ± 11 V range)

Reset function: Automatically reset to 0 V (± 20 mV) when powered on or communication interrupted

Output ripple: less than 10 mV RMS (30 kHz)

Protection function: equipped with short-circuit current limiting protection

Indicator light: DIAG LED indicates diagnostic status

Power requirements:

+5 V：43 mA

+15 V：11 mA

–15 V：6 mA

Working temperature: 7 ° C~55 ° C

Storage temperature: -40 ° C~85 ° C

Humidity range: 5%~95%, no condensation

Size: Approximately 41 mm x 305 mm x 213 mm

Certification: Compliant with UL/CUL certification, possessing anti electromagnetic interference and anti vibration impact capabilities

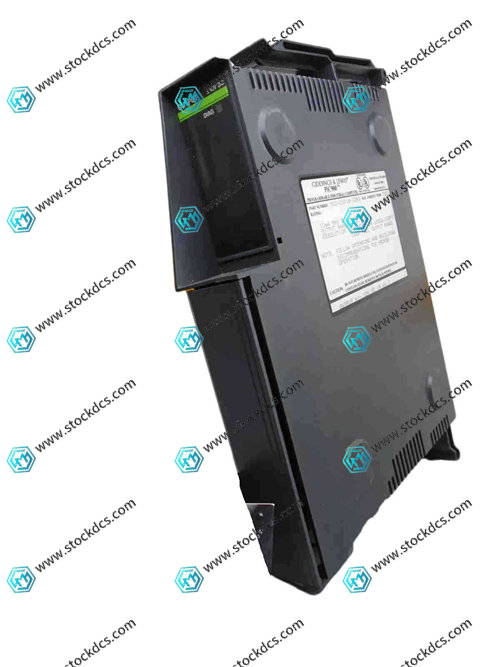

Product imag
