WOODWARD 8440-2050 Generator Set Controller

WOODWARD 8440-2050 Generator Set Controller

Product Details Introduction

WOODWARD 8440-2050 Generator Set Controller is a high-performance controller launched by Woodward, belonging to the easyYgen-3000XT series. It is designed for complex applications such as grid connection, synchronization, and load distribution of multiple generator sets, and is suitable for various engine driven generator systems such as diesel engines and gas engines.

1、 Product positioning

Woodward 8440-2050 is a multifunctional generator controller with integrated synchronization, parallel operation, load control, circuit breaker control, and communication functions. It is widely used in power stations, industrial emergency power supplies, offshore platforms, and other applications. This model is usually a variant of the easyYgen-3500XT-P1 or easyYgen-3500XT-P2 series.

2、 Main functions

Synchronization and parallel control: supports automatic synchronization of generators with the power grid or other generator sets;

Load distribution: Supports parallel operation of up to 32 units, with load sharing function;

Circuit breaker control: Built in CB1 (generator side) and CB2 (grid side) circuit breaker control logic;

Automatic start stop and engine management: integrated engine start stop, acceleration, and deceleration logic;

Protection function: It has electrical protection such as overvoltage, undervoltage, overclocking, underfrequency, overcurrent, and power feedback;

Remote communication and monitoring: Supports Modbus TCP/RTU, CANopen, SNMP, RS-485, Ethernet, etc;

Display and human-machine interface: integrated LCD display screen and buttons, capable of local configuration and monitoring of operating status;

Data recording and alarm function: It can record operational data and historical alarm events for easy maintenance and diagnosis.

3、 Technical parameters (brief)

Power input: 8 to 40 VDC

AC voltage measurement: 3-phase 277/480 VAC (L-N/L-L)

Analog input: 8 channels (voltage/current type)

Analog output: 4 channels (0-20 mA)

Digital input: 16 channels

Digital output: 11 channels

Communication interfaces: Ethernet, CAN, USB, RS-232, RS-485

Number of supported units: up to 32 parallel units

Working temperature: -25 ° C to+70 ° C

Protection level: IP65 (front panel)

Installation method: panel embedded installation

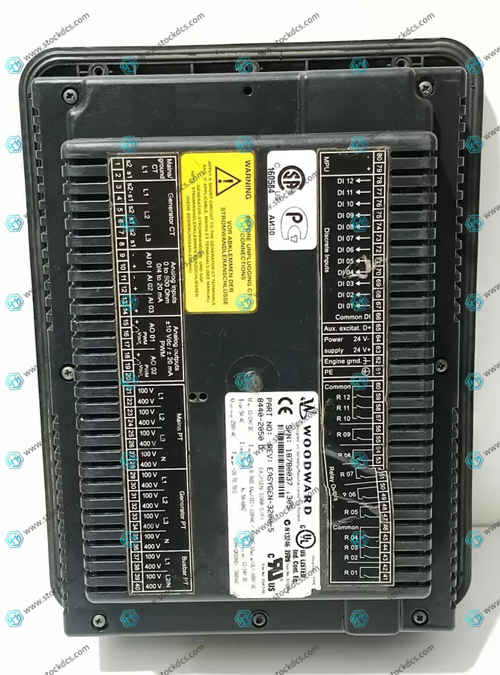

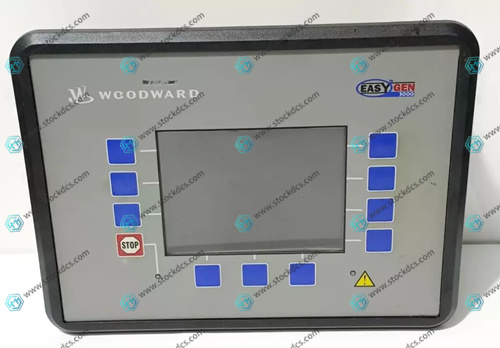

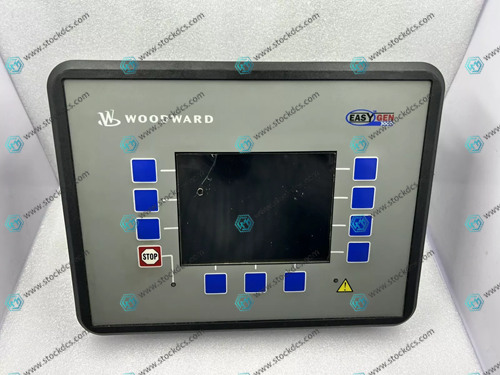

Product imag
