Elmo PCIM-BF-R50/800FEK motion control module

Elmo PCIM-BF-R50/800FEK motion control module

 Introduction

#Elmo PCIM-BF-R50/800FEK motion control module

1. Model: Elmo PCIM-BF-R50/800FEK, high-power servo motion control module

2. Supports high voltage DC input and is compatible with high-power servo motor drive

3. Equipped with high-performance current loop and position loop closed-loop motion control

4. Support EtherCAT bus to achieve multi axis synchronous control

5. Compatible with multiple encoder feedback signal acquisition

6. Built in STO safety torque shutdown, meeting industrial safety requirements

7. High module power density and low overall loss

8. Support multiple control modes including point position, speed, and torque

9. Integrated multiple protections for overcurrent, overvoltage, and overheating

10. Real time collection of motor operating condition feedback upper system

11. Support complex motion functions such as electronic cam and following

12. Hardware anti-interference design, suitable for complex electromagnetic environments in cabinets

13. Parameters can be saved, making device replacement and debugging convenient

14. Modular installation, easy disassembly and maintenance

15. Mostly used for high-power axis control in semiconductor and automation equipment

In summary, the Elmo PCIM-BF-R50/800FEK motion control module achieves precise motion control of high-power shaft systems, ensuring stable operation of equipment shaft groups

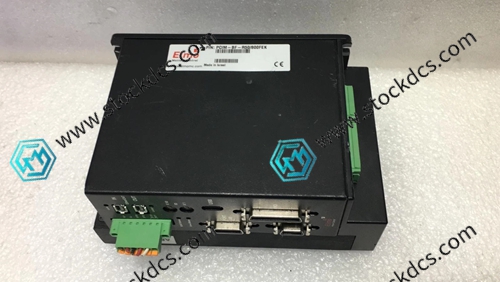

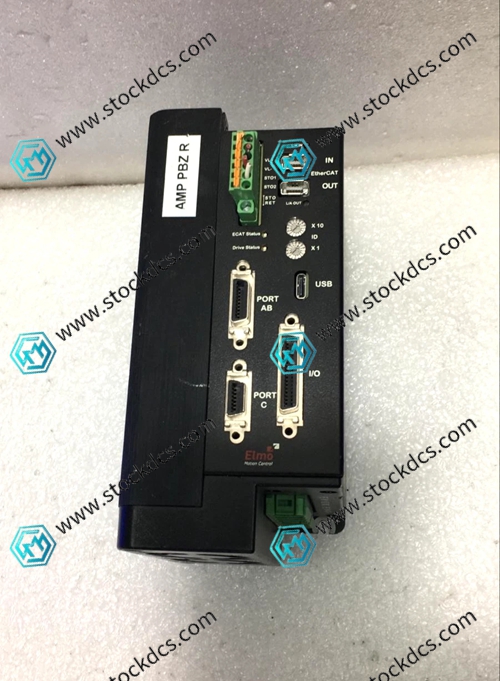

Product imag
