AMAT 0190-14502 Motion Controller

AMAT 0190-14502 Motion Controller

 Introduction

AMAT 0190-14502 Motion Controller

1. DSP digital signal processor architecture for achieving micrometer level high-precision multi axis motion control

2. Support position, speed, and torque closed-loop algorithms, suitable for semiconductor precision motion scenarios

3. Compatible with encoder and rotary transformer for multiple feedback signal acquisition and analysis

4. Slot type board structure, easy to plug, replace and maintain inside the cabinet

5. Multi axis synchronous interpolation to complete complex trajectory and wafer transfer action logic

6. Multi channel digital input and output, connected to limit, interlock, and alarm signal circuits

7. Supports both pulse and bus output modes, matched with servo drivers

8. Built in motion fault diagnosis, overspeed and overtravel abnormal output protection signals

9. Onboard event records, storing the history of motion faults for easy traceability analysis

10. Optoelectronic isolation interface, isolating external interference to protect the main control circuit

11. 24VDC industrial power supply, compatible with semiconductor equipment cabinet power supply system

12. Wide temperature working range, suitable for high and low temperature conditions around the equipment cavity

13. EMC electromagnetic compatibility to resist internal electromagnetic interference in semiconductor equipment

14. Three proof coating on circuit board, dustproof and moisture-proof, resistant to equipment vibration and impact

15. Can stack multiple cards and expand the number of multi axis motion control channels

AMAT 0190-14502 Motion Controller, a semiconductor specific motion control board used for wafer handling, worktable positioning, and precision motion control systems for process equipment

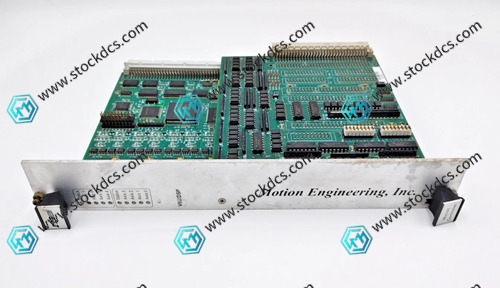

Product imag
