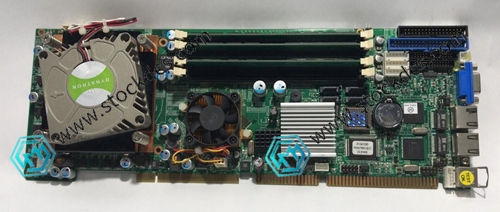

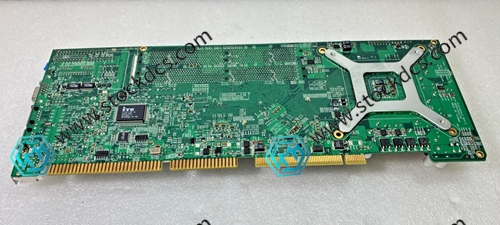

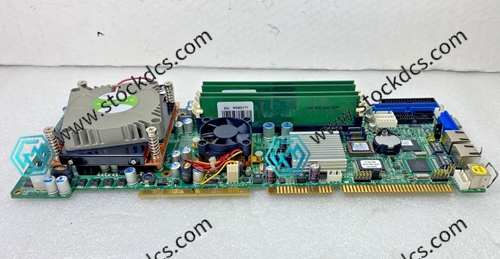

Nexcom PEAK760VL2 Industrial Motherboard

Nexcom PEAK760VL2 Industrial Motherboard

 Introduction

Nexcom PEAK760VL2

1. PEAK760VL2 adopts PICMG1.0 full-length card specification, and the industrial control chassis backplane is directly plugged and installed

2. Equipped with LGA775 slot, compatible with Pentium 4 and Celeron D series processors

3. Four DDR2 memory slots, dual channel maximum expansion up to 4GB operating memory

4. Built in dual gigabit independent network cards, convenient for industrial control dual network isolation data transmission

5. Equipped with four SATA hard drive interfaces, it can mount multiple industrial storage hard drives

6. Equipped with six USB 2.0 interfaces, it is convenient to connect various industrial control peripheral accessories externally

7. Comes with two serial ports, compatible with old-fashioned industrial instruments and PLC communication docking

8. Integrated onboard display chip, capable of outputting images without the need for a dedicated graphics card

9. Equipped with a hardware watchdog, the system freezes and automatically restarts to ensure uninterrupted operation

10. Support AT/ATX dual power supply mode, compatible with old industrial control power supply architecture

11. Industrial grade PCB board, resistant to dust and vibration, stable long-term operation in the workshop

12. The electrical protection of the circuit is complete, resisting static electricity and surge impact on site

13. Compliant with RoHS environmental lead-free standards and meeting cleanroom usage standards

14. The interface layout is neat, and the internal wiring and maintenance of the cabinet are simple and convenient

15. Strict aging testing at the factory, suitable for industrial control transformation scenarios of old production lines

Nexcom PEAK760VL2 standard full-length industrial control motherboard, commonly used for traditional automation equipment and equipment transformation industrial control main control.

Product imag
