MKS AS02123G-02 Input/Output Controller

MKS AS02123G-02 Input/Output Controller

 Introduction

MKS AS02123G-02

1. AS02123G-02 is designed for dedicated IO signal acquisition and control of semiconductor vacuum equipment

2. Multiple digital input and output channels, collecting various on-site switch signals of valves and pressures

3. Optoelectronic isolation circuit isolates strong and weak electrical interference, ensuring stable signal transmission

4. Plug in modular structure, easy and fast cabinet insertion, disassembly, and replacement

5. Can be linked with the whole machine safety interlock, and quickly output locking instructions in abnormal states

6. Comes with hardware overcurrent and short circuit protection to prevent module circuits from burning out and being damaged

7. Cleanroom specific components, suitable for the working environment of dust-free semiconductor workshops

8. Real time uploading of IO status data to the main control system for centralized control of the entire machine

9. Seismic reinforcement treatment for the line, reducing the risk of virtual welding in the vibration environment during equipment operation

10. Low power operation, long-term continuous operation, reasonable temperature rise control of the whole machine

11. The channel status indicator light is displayed intuitively, and on-site troubleshooting is clear at a glance

12. Native adaptation to MKS vacuum measurement and control system, communication docking does not require secondary modification

13. Equipped with signal stabilization filtering to prevent misoperation caused by electromagnetic interference in the workshop

14. Built in fault recording function, retaining abnormal trigger records for easy traceability and maintenance

15. Strictly calibrated for factory electrical performance, excellent stability during long-term mass production operation

MKS AS02123G-02 semiconductor equipment dedicated IO control module, which coordinates the acquisition and execution of various switch signals in the cavity.

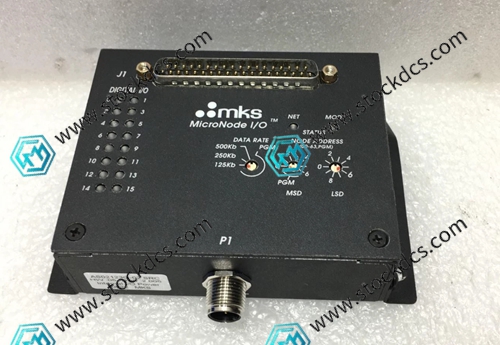

Product imag
