EDWARDS AVALUE LPC-1203 touch screen panel

EDWARDS AVALUE LPC-1203 touch screen panel

 Introduction

EDWARDS AVALUE LPC-1203 Touchscreen Panel

1. 12.1-inch XGA display screen, 1024 × 768 resolution, clear and delicate image display

2. Five wire resistive touch screen, stable operation even with gloves on

3. EDWARDS AVALUE LPC-1203 front panel IP65 protection, dustproof and splash proof, suitable for control cabinet environment

4. Fanless cooling structure, low noise, reduces dust accumulation and faults

5. Equipped with a low-power Atom processor, suitable for long-term continuous operation conditions

6. Equipped with Ethernet ports, RS232/485 rich communication interfaces, and connected to vacuum control systems

7. Support CFast/solid-state storage, convenient storage and backup of programs and running data

8. LED backlight adjustable, stable brightness for long-term operation, extending screen lifespan

9. EDWARDS AVALUE LPC-1203 embedded installation design, compatible with Edward vacuum unit cabinets

10. Industrial grade component screening, capable of withstanding temperature and humidity fluctuations in clean workshops

11. Built in real-time clock, running logs, alarm information with timestamp recording

12. Panel stainless steel shell, corrosion-resistant and resistant to slight chemical volatiles in the workshop

13. Support multi language configuration interface, convenient for cross domestic line operation and maintenance

14. Wide voltage DC power supply, capable of withstanding small voltage fluctuations in the power grid

15. Modular overall structure, time-saving disassembly and replacement of spare parts, and shortening downtime for maintenance

The EDWARDS AVALUE LPC-1203 touch screen panel serves as the human-machine interaction terminal for Edwards vacuum equipment, enabling parameter monitoring and process operation of vacuum pumps and valves.

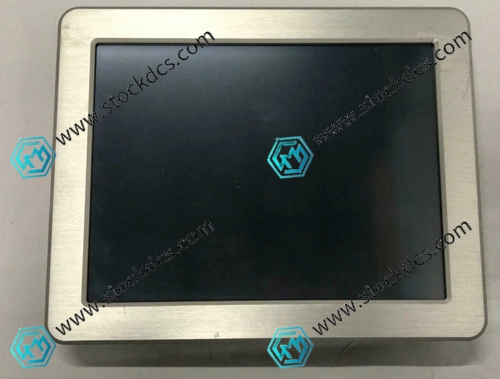

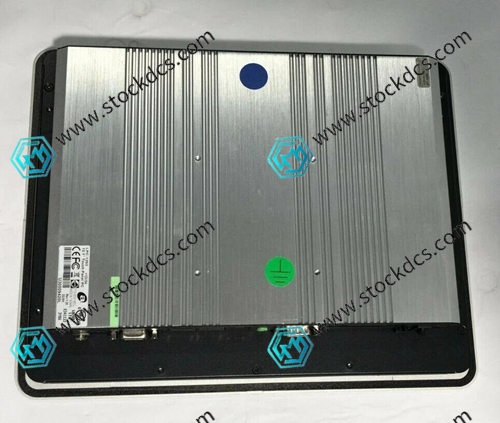

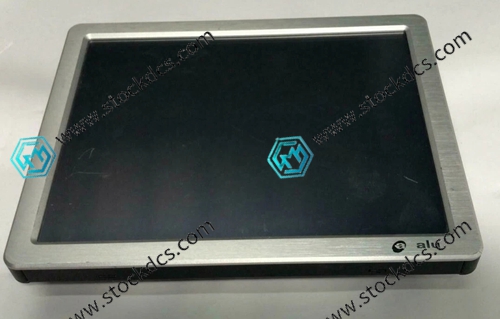

Product imag
