NI PXIE-8135 Embedded Controller

NI PXIE-8135 Embedded Controller

Product Details Introduction

NI PXIe-8135 is a high-performance PXI Express embedded controller provided by National Instruments (NI), widely used in the field of automation testing and measurement. The following is the detailed information of the controller:

main features

Processor performance:

Equipped with Intel Core i7-3610QE quad core processor, with a clock speed of 2.3 GHz and acceleration up to 3.3 GHz.

Supporting hyper threading technology, it can provide excellent performance in multitasking and complex computing.

Memory:

The default configuration is 4GB DDR3-1600 memory, which can be expanded to 16GB and is suitable for running large applications and data processing tasks.

Storage:

Provide 320 GB SATA hard drive storage (or optional solid-state drive for increased speed and durability).

Support external USB storage device expansion.

Rich interfaces:

Two Gigabit Ethernet ports, supporting high-speed network connections.

Four USB 2.0 ports and two USB 3.0 ports.

VGA display interface, supporting external display.

Can be used for external data transmission, debugging, and device connection.

Operating System:

Pre installed Windows 7 Embedded Standard or LabVIEW Real Time to meet different development needs.

Supports multiple NI drivers and toolkits, such as DAQmx, TestStand, etc.

PXI Express：

Provide a system bandwidth of up to 8 GB/s.

Backward compatible with PXI modules, suitable for building hybrid PXI and PXIe systems.

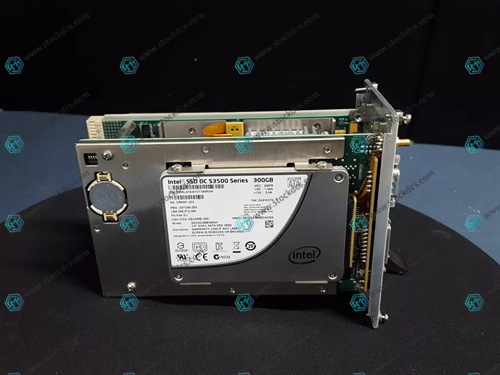

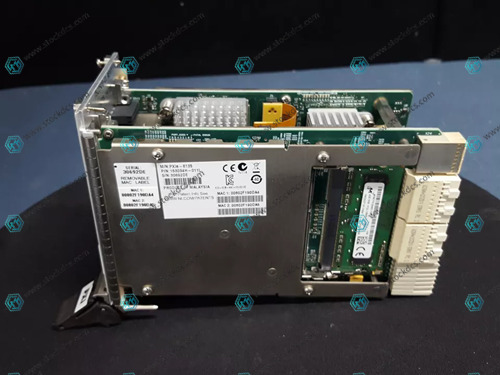

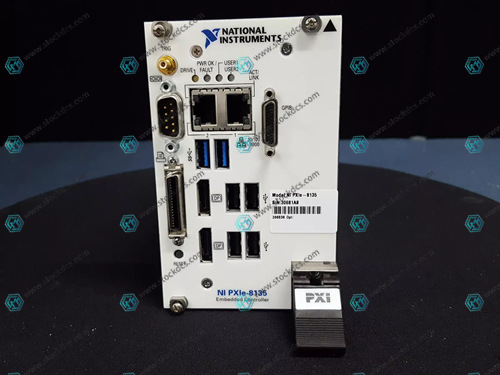

Product imag
