AMAT 0190-05410 Bus Card

AMAT 0190-05410 Bus Card

 Introduction

AMAT 0190-05410 Bus Card

1. CPCI bus architecture dual IP carrier board, compatible with application materials Centura and Endura semiconductor devices

2. Support the installation of Industry Pack submodules, allowing for flexible expansion of analog and digital signal channels

3. AMAT 0190-05410 realizes high-speed data exchange and transmission between the main control backplane and peripheral modules

4. Optimize bus timing design to meet real-time signal acquisition requirements of wafer process equipment

5. Onboard isolation protection circuit to resist electromagnetic interference and surge impact in clean workshops

6. Gold finger gold plating process, stable contact during long-term insertion and extraction operation, less likely to cause communication failures

7. Industrial grade PCB substrate, capable of withstanding continuous fluctuations in temperature and humidity around the cavity

8. Channel resources can be freely configured and compatible with process components such as vacuum gauges and MFCs for docking

9. AMAT 0190-05410 is equipped with status indicator lights for quick diagnosis of bus abnormalities

10. Modular slot structure, separate replacement of sub modules without the need for overall disassembly and unloading of the board

11. Strict impedance wiring ensures the integrity of high-speed bus signals and reduces transmission errors

12. Strong and weak current zoning routing to avoid power noise interference in communication links

13. The components have undergone aging screening and support 24/7 uninterrupted operation of the production line

14. Standard 3U board size, matching equipment cPCI chassis rail installation specifications

15. The bus communication pressure test has been completed at the factory, and the performance consistency of spare parts is excellent

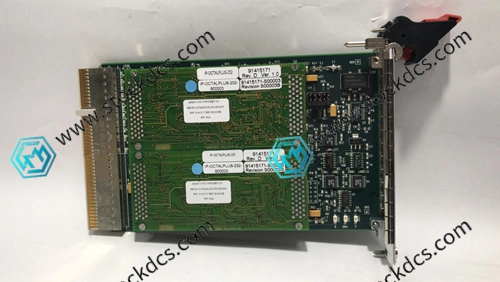

The AMAT 0190-05410 bus card serves as the cPCI system carrier board and is the core component for signal extension and bus communication in semiconductor deposition etching equipment.
