Philips 453567006481 acquisition board

Philips 453567006481 acquisition board

 Introduction

Philips 453567006481 acquisition board

1. 453567006481 adopts medical grade PCB substrate, with excellent signal acquisition stability

2. High precision analog-to-digital conversion circuit effectively reduces image signal distortion issues

3. Built in multi-stage filtering circuit, 453567006481 suppresses external electromagnetic interference

4. Multiple parallel acquisition channels, synchronously receiving multiple sensor raw signals

5. Electrical isolation wiring design to block mutual interference between high and low voltage circuits

6. Multiple overvoltage and overcurrent protection to ensure the safety of medical equipment operation

7. Accurate and controllable sampling timing to meet the real-time imaging requirements of imaging equipment

8. Partition line layout to reduce signal crosstalk between channels

9. Standard board shape and interface, easy replacement and disassembly of the whole machine

10. 453567006481 has undergone rigorous factory electrical testing with high data consistency

11. Wide temperature tolerance characteristics, suitable for continuous operation environment inside the equipment

12. Moisture and dust resistant structure reduces the occurrence rate of long-term operational failures

13. High speed data transmission link ensures complete output of image data stream

14. The onboard interface matches the original ultrasonic imaging equipment and is directly compatible with assembly

15. Long term continuous stable operation reduces equipment downtime and maintenance frequency

Philips 453567006481 acquisition board is used for the ultrasonic signal acquisition and preprocessing unit of Philips ultrasound equipment

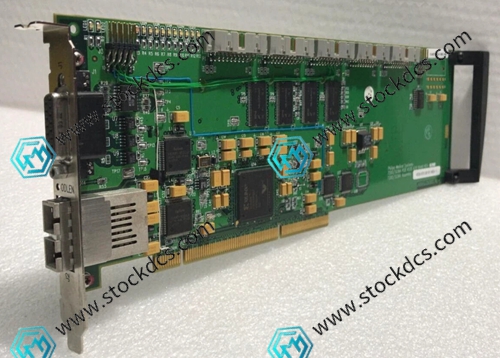

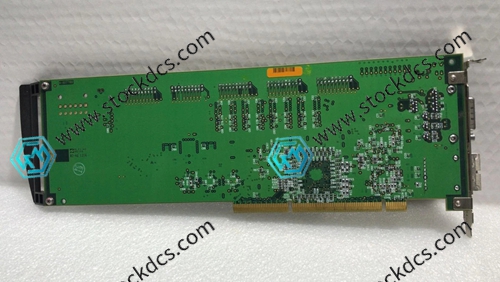

Product imag
