Sanritz Automation SVP501-3-P10 Signal Board

Sanritz Automation SVP501-3-P10 Signal Board

 Introduction

The Sanritz Automation SVP501-3-P10 signal board is a VME bus PowerPC single board industrial control board, suitable for Japanese semiconductor equipment process signal operation and logic control

1. Equipped with PowerPC 750FX processor for high-speed processing of equipment process instructions

2 onboard ECC error correcting memory for long-term operation and data storage without error loss

3 standard VME single slot card cabinet, easy and fast to plug, replace, and repair

Four differential signal acquisition channels synchronously read cavity sensing signals

5 optocoupler isolation circuit to resist RF electromagnetic interference and clutter in etched cavity

6 layers of precision control resistor wiring for high-speed bus with extremely low signal transmission loss

Separate strong and weak electricity in 7 independent power supply zones to prevent circuit crosstalk

8 gold-plated connectors with anti-oxidation properties, stable and reliable long-term contact in clean workshops

9 built-in hardware protection circuits for overvoltage, overcurrent, overheating, and short circuit

10 built-in onboard fault self check code for quick positioning of abnormal signal points

11 wide temperature industrial substrate adaptation for dust-free semiconductor constant temperature mass production conditions

12 large-area copper laying auxiliary chip for heat dissipation and full load operation, less prone to high temperatures

13. Reserve multiple sets of external IO interfaces to link drivers and valve modules

14 supports factory specific communication protocol docking with the main control system of the entire machine

15 Widely used in semiconductor equipment for thin film deposition, etching, wafer processing

Sanritz Automation SVP501-3-P10 signal board has stable operation and strong anti-interference ability, which can support precision process automation control of semiconductor production lines 24/7

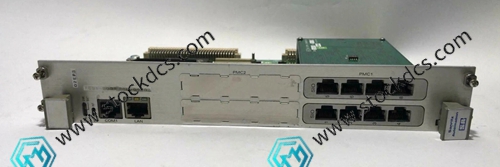

Product imag
