TEL 3281-000080-13 Input/Output Module

TEL 3281-000080-13 Input/Output Module

 Introduction

TEL 3281-000080-13 Input/Output Module

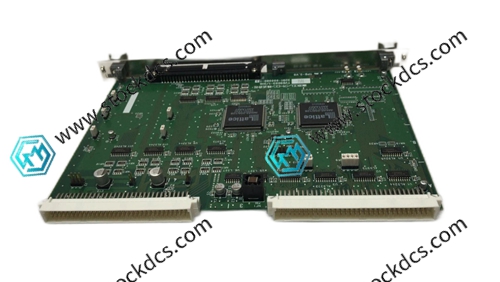

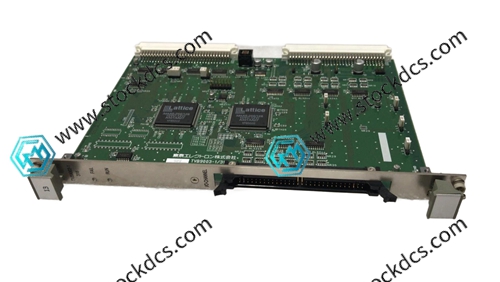

Introduction: TEL 3281-000080-13 is a specialized IO board for semiconductor process equipment at Tokyo Electronics, used for machine signal acquisition and action control. It is a commonly used replacement part for maintenance.

Equipped with multiple digital and analog signal channels, collecting signals from chamber pressure, cabin door, and limit sensors

External devices such as output control valves, vacuum pumps, heating components, wafer transfer mechanisms, etc

Equipped with optoelectronic isolation circuit to resist electromagnetic interference caused by plasma environment

Onboard filtering components reduce signal clutter and prevent equipment from triggering actions incorrectly

Backboard direct insertion installation, easy disassembly and replacement, no need to modify the original wiring

Each channel is equipped with independent indicator lights to quickly troubleshoot circuit and signal faults

Using industrial temperature resistant components, it can operate continuously and stably 24/7

The single channel is equipped with independent short circuit and overload protection, and local faults do not affect the overall operation of the board

Compatible with the original factory internal bus of the device, real-time transmission of cavity process data to the main control

Built in safety interlock program, automatic shutdown protection in case of vacuum or cabin door abnormalities

The board surface is equipped with a three proof coating, which is dustproof and moisture-proof, and suitable for dust-free and clean workshop environments

Line partition layout, separate strong and weak electrical signals to avoid mutual interference

Equipped with a built-in power on self-test function, convenient for daily fault detection and maintenance

The substrate is resistant to high temperatures, and there is no offset in signal acquisition under high and low temperature process environments

After completing all electrical debugging and calibration at the factory, the machine can be matched on the machine. End of use: TEL 3281-000080-13 is compatible with TEL etching and thin film deposition equipment, with stable signal transmission and good compatibility for replacement.
