SANYO DENKI R2AA06040FCP00 servo motor

SANYO DENKI R2AA06040FCP00 servo motor

Product Details Introduction

SANYO DENKI R2AA06040FCP00 is a Sanyo SANMOTION R series medium inertia AC servo motor with brakes. With 400W power and high-precision control as its core advantages, it is widely used in precision automation equipment. The following are practical points to summarize:

Rated power of 400W, compatible with 200V AC power, rated current of 2.8A, capable of stable output of 1.27N · m rated torque, peak torque can reach 4.8N · m, meeting the requirements of medium load precision transmission.

Equipped with 24V DC braking function, it can quickly lock the motor shaft when the equipment is stopped or powered off, avoiding load displacement due to inertia. It is particularly suitable for vertical motion mechanisms and high-precision positioning stations.

Equipped with a 17 bit encoder, the positioning resolution reaches 131072 segments/rotation, which can accurately feedback the rotor position and achieve micrometer level positioning control in conjunction with the driver.

The rated speed is 3000 revolutions per minute, and the maximum speed can reach 6000 revolutions per minute. The rotor has a moment of inertia of 415.3g · cm ², with fast start stop response, suitable for automation scenarios with high-frequency actions.

Compact mechanical structure, flange size 60mm, body length 123.5mm, output shaft diameter 14mm, shaft length 25mm, weight approximately 1.4-1.8kg, suitable for equipment layouts with limited space.

The working temperature range is 0-40 ℃, which can adapt to the conventional industrial workshop environment, and the protective performance can cope with common working conditions such as dust and slight vibration.

Suitable for Shanyang RS1A03AA and other models of drivers, with strong compatibility, and can also be matched with some universal servo drives, with flexible selection and replacement.

Common versions with the suffix "M" (such as R2AA06040FCP00M) belong to the same series of standard models, comply with RoHS standards, and have stable quality assurance.

Widely used in SMT surface mount machines, semiconductor testing equipment, small CNC machine tools, packaging machinery, etc., it is a cost-effective choice for precision transmission scenarios.

Daily maintenance is simple, and common faults are often brake component wear and loose encoder wiring. The supply of accessories is sufficient, and quick troubleshooting can be achieved by measuring the brake voltage and checking the circuit.

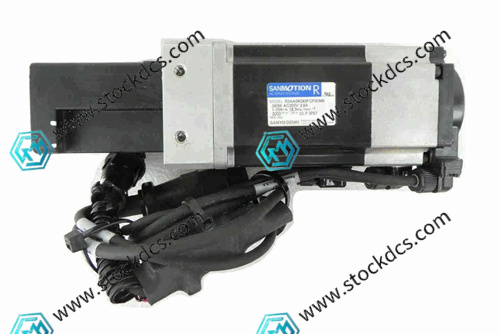

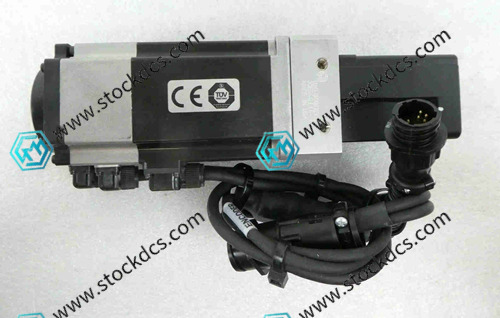

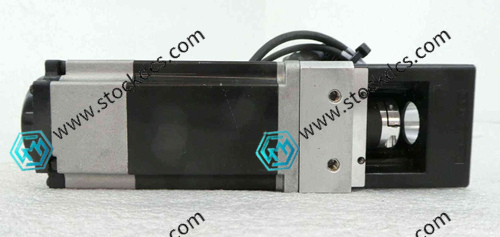

SANYO DENKI R2AA06040FCP00  Product imag
