Sanyo Denki P50B05020DXS00 spindle motor

SANYO DENKI  P50B05020DXS00 spindle motor

Product Details Introduction

Small and Medium Power Precision Drive: As a classic spindle model of the P5 series, P50B05020DXS00 has a rated power suitable for 200W level application scenarios. It adopts optimized electromagnetic design to achieve efficient energy conversion and can provide stable power output in small CNC machine tools and precision machining equipment, balancing energy efficiency and drive accuracy.

High resolution positioning control: Equipped with a high-precision optical encoder (reference series 2000 line and above configuration), combined with a fully closed-loop feedback system, it can achieve micrometer level position positioning, effectively improving the surface quality and size consistency of workpiece processing in PCB milling, small mold processing and other scenarios.

Smooth operation in a wide speed range: The speed adjustment range covers the low-speed constant torque to high-speed light load range, with a maximum speed of over 3000rpm. By optimizing the rotor structure to reduce cogging torque, the speed fluctuation during low-speed operation is significantly reduced, making it suitable for multi speed demand scenarios such as precision grinding and fine carving.

Full range drive compatibility: It can seamlessly match servo drives of the same brand such as PZ, PU, PV, etc., without the need for additional parameter adjustment to achieve linkage control. In the upgrade and maintenance of old Japanese small equipment, it can directly replace the original P5 series motor, greatly reducing the cost of adaptation and debugging.

Enhanced environmental resistance design: using high rigidity bearings and optimized dynamic balancing technology, the operating noise is below 60dB, and the vibration amplitude is controlled within 0.1mm; The body has a protection level of IP54 or above, which can resist dust and slight oil stains in the processing workshop, and is suitable for conventional industrial environments ranging from 0 to 40 ℃.

Low consumption and easy maintenance structure: By using low loss electromagnetic materials, the energy loss of the motor is reduced by more than 10% compared to traditional models; Adopting an integrated flying wire design, simplifying the wiring process, and coordinating with standardized component selection, it is easy to replace and maintain in the later stage, reducing equipment downtime.

Multi level safety protection: Equipped with triple protection modules for overload, overcurrent, and overheating, it automatically cuts off the output when the load exceeds 150% of the rated value. At the same time, it has undervoltage and overvoltage protection functions to prevent motor and related equipment from being damaged due to abnormal working conditions and improve production safety.

Specialized adaptation for small equipment: With a compact body design (reference series 54 × 54mm flange size) and precise control performance, it is widely used in small CNC machine tools, precision testing instruments, textile machinery spindles and other fields. It is not only the preferred choice for new equipment matching, but also the benchmark replacement for maintenance of small and old equipment.

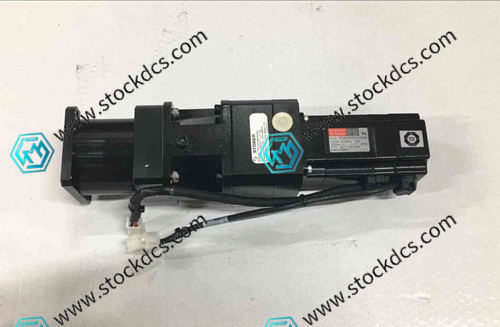

SANYO DENKI P50B05020DXS00 Product imag
