Siemens 6ES7972-0AC80-0XA0 is a PROFIBUS repeater module belonging to the Siemens SIMATIC S7 series of communication accessories. This module is used to relay, amplify, segment, and isolate PROFIBUS network signals, improving communication distance and reliability. It is an important component in building large-scale PROFIBUS networks.

1、 Basic Product Information

Project Description

Product model 6ES7972-0AC80-0XA0

Product Name: PROFIBUS Repeater Module

Belonging to Siemens SIMATIC S7 and SINEC L2 bus systems series

Manufacturer Siemens AG

2、 Core functions and features

PROFIBUS signal relay

Used to extend the physical distance of PROFIBUS-DP network;

Eliminate attenuation and interference through signal regeneration, shaping, and amplification.

Line segment isolation

Provide electrical isolation to prevent the spread of faults;

Each bus segment can work independently, facilitating fault diagnosis and maintenance.

Expand network structure

Support the construction of longer and more complex topology structures (such as star and tree);

Suitable for situations where multiple bus segments are connected in parallel.

Plug and play, no configuration required

No programming required, it works automatically after installation;

Equipped with LED indicator lights to display operational status and data transmission status.

3、 Technical parameters

Parameter values

Communication Protocol PROFIBUS-DP

Automatic transmission rate adaptation from 9.6 kbps to 12 Mbps

The isolation voltage is usually 500 VDC (electrical isolation)

Connection method: 9-pin SUB-D connector (RS-485, standard PROFIBUS interface)

Working voltage 24 V DC (± 20%)

Power consumption is about 1.5 W

Installation method: DIN rail installation

Shell protection level IP20 (suitable for use inside control cabinets)

Working temperature range 0-60 ° C

Indicator lights PWR (power), Rx/Tx (data reception/transmission), ERR (error)

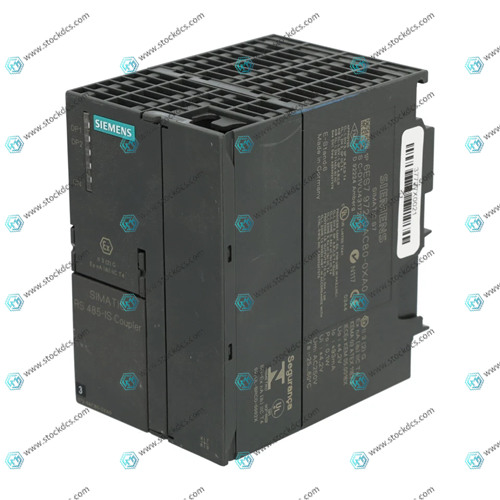

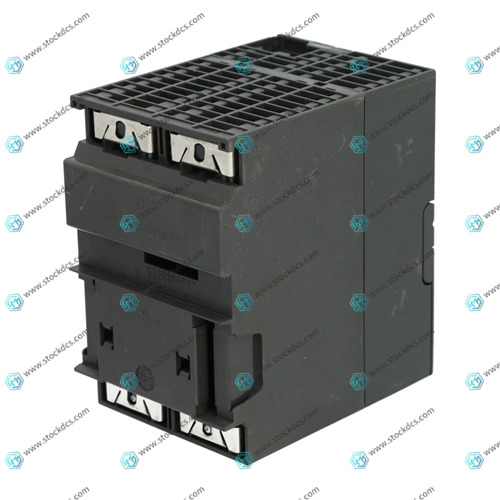

Product imag
