Semitool 900T0397-501 Control Box Assembly

Semitool 900T0397-501 Control Box Assembly

 Introduction

Semitool 900T0397-501 Annealing Control Box Assembly, a complete control unit for semiconductor wet annealing equipment, is commonly used for replacing machine failure spare parts.

5 product features:

1. Integrated chassis, coordinating annealing process temperature, gas, and timing logic control.

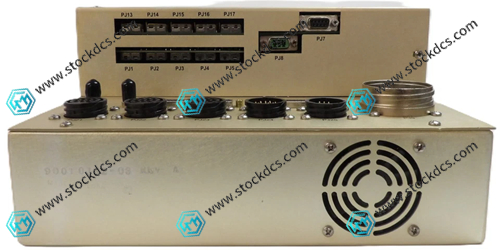

2. Multiple sets of specialized circular connectors, native matching Semitool machine harness, direct disassembly and alignment.

3. Equipped with process parameter storage, multiple annealing formulas can be called to ensure wafer process consistency.

4. Built in fault self check, abnormal state output alarm signal, convenient for quickly locating equipment problems.

5. The protective structure of the chassis can withstand the workshop process environment and reduce the impact of dust and moisture on internal boards.

5 product parameters:

1. Exchange the power supply specifications of the whole machine to adapt to the equipment cabinet.

2. Multiple digital IO and analog signals, connected to heaters, flow meters, and valve components.

3. Support internal bus interaction of the machine and receive process instructions issued by the upper computer.

4. Cabinet rack mounted installation structure.

5. The working environment temperature is 18-30 ℃, suitable for semiconductor ultra clean workshops.

5 application areas:

1. Semitool wet annealing equipment main control unit.

2. Spare parts for wafer wet processing annealing process system.

3. Control of annealing process after semiconductor wafer cleaning.

4. Electrical control of wet process equipment for chip manufacturing.

5. Replace the entire control box of the old Semitool machine due to malfunction.

Overall, Semitool 900T0397-501 belongs to the exclusive complete control assembly of the machine, mainly consisting of disassembled spare parts on the market. Before being put into production, the hardware version should be checked, and the process integration should be completed.
