Bogen MCPCA3 control card module

Bogen MCPCA3 control card module

 Introduction

Bogen MCPCA3 control card module

1. Bogen MCPCA3 is a specialized processor motherboard for the Multicom2000 system

2. Adapt to MCMF host framework backplane bus to complete machine scheduling

3. Integrated RS-232 and RS-485 dual serial communication interfaces

4. Responsible for the overall logical operation and signal scheduling of the intercom system

5. Can work collaboratively with MCACB simulation card and MCSC station card

6. Onboard storage unit saves system configuration parameters

7. Hardware watchdog, automatic reset protection for abnormal states

8. Gold finger backplate plug, convenient rack disassembly and maintenance

9. Panel status indicator light, providing feedback on operation and alarm status

10. Equipped with system fault self check, quickly locate board abnormalities

11. Support multi site intercom calls and broadcast logic processing

12. Industrial grade PCB board, suitable for building communication cabinet working conditions

13. Backboard power supply, low power consumption, capable of long-term uninterrupted operation

14. Support system networking expansion and increase the number of sites

15. Relay drive circuit linkage, realizing call interlocking output

The Bogen MCPCA3 control card module, as the core processor of the Multicom2000 intercom system, controls the entire business logic of internal intercom and paging broadcasting in buildings.

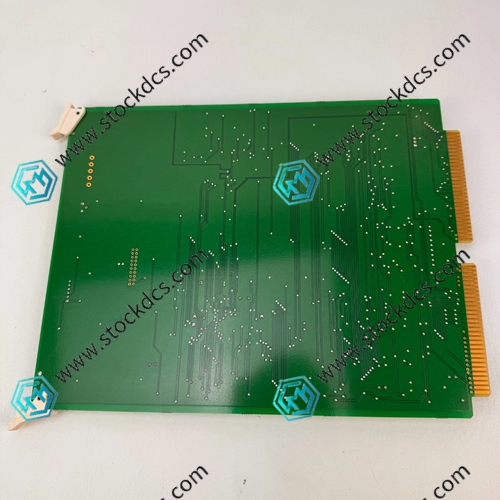

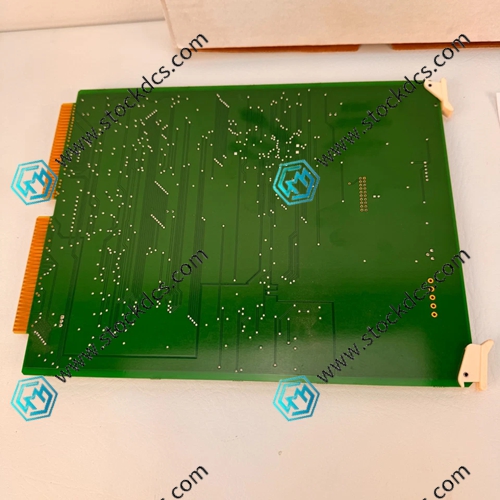

Product imag
