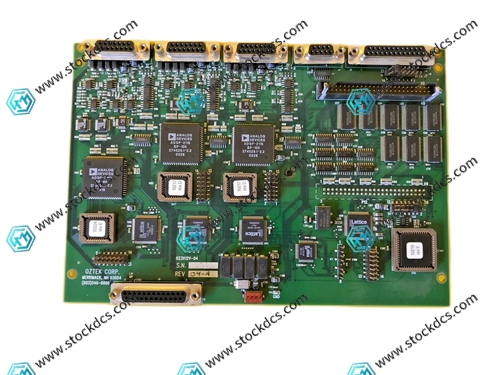

OZTEK OZ3X12V-04 Printed Circuit Board

1. Industrial power dedicated PCB board, compatible with 12V power supply circuit hardware carrier

2. Multi layer board structure, power layer and signal layer separated to reduce mutual interference

3. Thickened copper foil wiring, strong current carrying capacity, and good temperature rise control

4. Impedance matching design ensures complete and stable power circuit signals

5. High quality substrate, high Tg temperature resistance, and resistance to high temperature environments inside equipment

6. Through hole electroplating process ensures reliable interlayer conductivity and is not prone to virtual breakage during long-term operation

7. The solder mask coating is uniform, resistant to moisture and dust, and delays the oxidation and corrosion of the circuit

8. High density pad layout, suitable for power device and connector assembly

9. Reserve multiple sets of test pads for easy on-site inspection and fault location

10. On board filtering wiring design to reduce power output ripple interference

11. Excellent insulation performance, avoiding the risk of power circuit leakage and short circuit

12. Positioning hole standard, directly fixed with bolts inside the equipment cavity

13. Strengthening the edge of the board and reducing the risk of cracking during disassembly and maintenance

14. Hardware compatible with OZTEK series power components, with strong overall compatibility

15. Suitable for precision equipment power supply units, supporting 24-hour uninterrupted operation

OZTEK OZ3X12V-04 printed circuit board is a dedicated carrier circuit board for industrial power supply units.
