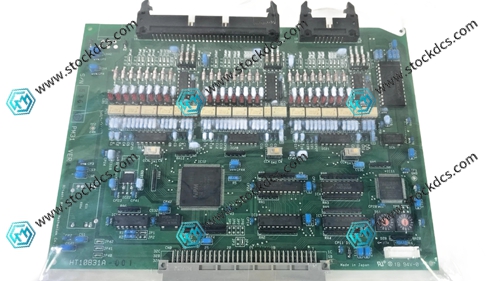

HITACHI HT10831A-001 interface board PCB card

1. Hitachi semiconductor equipment dedicated signal interface PCB board, realizing signal transfer between different modules

2. Multi layer board wiring design, distinguishing power circuits from high-speed signal lines

3. Precision electroplating through-hole technology ensures stable and reliable conductivity between the inner layers of the board

4. Multiple sets of high-density connectors, compatible with various daughter board components inside the entire machine

5. Strict control of signal impedance ensures the integrity of high-speed signal transmission

6. Onboard signal conditioning circuit, completes level conversion and signal buffering

7. Reserved testing and welding inventory space for on-site inspection and troubleshooting

8. The solder mask protective layer has excellent performance, resisting equipment compartment dust and slight temperature erosion

9. Optoelectronic isolation circuit to reduce the impact of ground loop interference between modules

10. Reinforcement treatment of the board edge, making disassembly and insertion less likely to cause damage to the board body

11. Excellent insulation performance, avoiding the risk of leakage between high and low voltage circuits

12. Standard chassis slot positioning size, easy installation and replacement alignment

13. Compatible with Hitachi's original process equipment, with high hardware firmware compatibility

14. Supports 24-hour continuous operation and adapts to the working conditions of semiconductor workshops

15. Used for signal relay between equipment main control unit, sensors, and execution components

The HITACHI HT10831A-001 interface board PCB card is the core circuit component for signal exchange and conversion within semiconductor equipment.

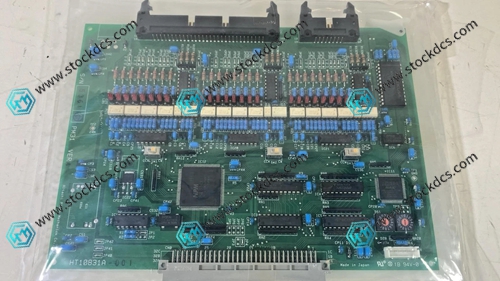

Product imag
