TEL 3308-000065-13 Printed Circuit Board

TEL 3308-000065-13 Printed Circuit Board

 Introduction

TEL 3308-000065-13 Printed Circuit Board

1. The substrate has strong insulation properties, making it less prone to leakage and short circuits in clean workshops

2. Precise wiring layout, stable transmission of weak sensing signals

3. Anti electromagnetic interference, no errors in semiconductor machines under complex electric fields

4. High temperature resistance, suitable for long-term heating conditions of process equipment

5. Multi layer line integration, power supply and signal line partition isolation

6. Original factory standard hole position, precise alignment and installation inside the machine

7. Corrosion resistant coating to resist corrosion from trace process gases in clean rooms

8. The copper foil coating is thick, and it is not easily oxidized or aged when powered on for a long time

9. Uniform line impedance, small voltage drop, stable power supply

10. Equipped with protective wiring design to avoid signal crosstalk issues

11. The seismic resistant structure is solid, and the equipment is not easily welded off due to vibration during operation

12. Strict factory inspection, with extremely low probability of conduction and disconnection faults

13. Suitable for plug-in assembly, easy on-site disassembly and replacement

14. Adapt to low-noise signal transmission and various sensor docking

15. Excellent moisture resistance, stable operation in high humidity clean environment

TEL 3308-000065-13 is an original PCB board provided by Tokyo Electronics, specifically designed for internal signal transmission and power transfer in semiconductor process equipment.

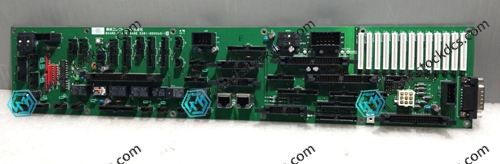

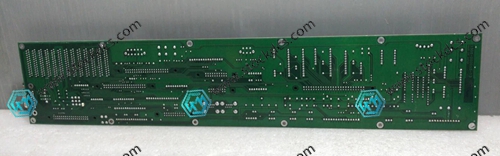

Product imag
