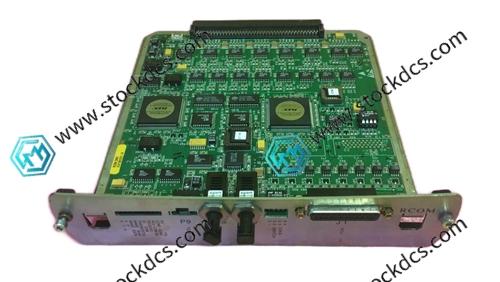

Philips 47471801010 Printed Circuit Board

Philips 47471801010 Printed Circuit Board

 Introduction

Philips 47471801010

1. 47471801010 is an original printed circuit board specifically designed for Philips medical imaging equipment

2. Multi layer precision wiring design, low transmission loss and high stability of high-frequency image signals

3. Using high TG high-temperature resistant substrate, it is not easy for the board to deform after long-term continuous operation

4. The circuit comes with precise impedance matching to avoid signal crosstalk and data loss issues

5. Integrated electrostatic protection circuit, on-site operation can resist electrostatic breakdown of components

6. Gold finger gold plating process, stable contact after repeated insertion and removal, not easily oxidized, poor contact

7. Onboard power filter circuit, suppresses power supply noise, and ensures stable voltage output of the entire machine

8. Reinforced pad design, less prone to virtual soldering and desoldering in equipment operating vibration environments

9. Standardized layout of interface terminals, easy disassembly and docking of the whole machine, convenient maintenance and wiring

10. Equipped with hardware current limiting, short circuit protection, and timely protection of onboard circuits under abnormal working conditions

11. Low power line layout, overall temperature rise control within a reasonable range during full load operation

12. Through rigorous medical grade testing, it meets the standards for clean and safe use of medical equipment

13. Anti external electromagnetic interference, electrical equipment around the computer room will not interfere with image data

14. Original factory exclusive version size, corresponding models can be directly replaced without modification or debugging

15. Full process electrical aging testing at the factory, with low failure rate during long-term operation in medical scenarios

Philips 47471801010 medical equipment exclusive matching PCB board ensures signal acquisition of imaging equipment and stable operation of the entire circuit.
