SBS 85851095 Image Acquisition Card

SBS 85851095 Image Acquisition Card

 Introduction

SBS 85851095 Image Acquisition Card

1. Standard PCIe slot for direct insertion into industrial control host, SBS 85851095 for convenient access to the entire hardware system

2. Adapt to industrial camera digital image signals, stably collect high-definition image data

3. Hardware equipped with real-time preprocessing chip, simple noise reduction to reduce the computational pressure of the host

4. Support external trigger collection, can be synchronized with PLC and sensors for precise capture

5. Multi channel signal independent channel acquisition, multiple cameras working simultaneously without interfering with each other

6. Onboard hardware filtering circuit to resist workshop electromagnetic interference and avoid abnormal image noise

7. The baffle status indicator light provides a visual view of signal access, operation, and error status

8. Built in overvoltage and electrostatic protection, the board is not easily damaged by fluctuations in the industrial power grid

9. Aluminum alloy auxiliary heat dissipation structure, long-term full load collection, stable temperature rise control

10. Reinforce PCB circuits to reduce the risk of virtual soldering and wire breakage during equipment vibration conditions

11. Supporting standardized driver programs, compatible with mainstream industrial visual software debugging

12. Adequate data transmission bandwidth, high frame rate capture without buffering or frame loss

13. Wide temperature adaptation design, stable operation of control cabinet in conventional high and low temperature environments

14. Single channel fault isolation, one abnormal path will not affect the operation of the entire acquisition card

15. Factory power aging and signal verification, low failure rate during long-term operation on the machine

SBS 85851095 is a specialized acquisition card for industrial vision, commonly used for data collection in production line visual inspection and precision visual positioning.

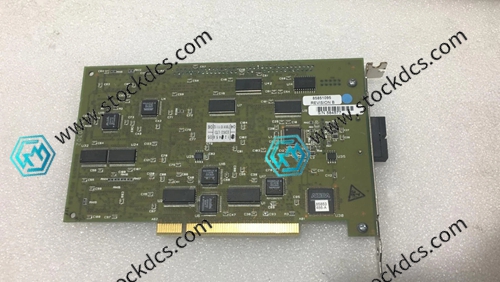

Product imag
