TEL AP9Z-2033A Input/Output Module

TEL AP9Z-2033A Input/Output Module

 Introduction

TEL AP9Z-2033A Input/Output Module

1. Specially designed for use with TEL semiconductor etching/coating and developing equipment

2. Multiple digital I/O channels for device signal acquisition and action output

3. TEL AP9Z-2033A is equipped with an optoelectronic isolation circuit to suppress signal interference

4. Fast signal response speed, meeting the high-precision timing requirements of wafer equipment

5. Onboard status indicator light for quick identification of faults on site

6. Industrial grade PCB board, resistant to clean workshop working conditions and environments

7. Equipped with surge protection design to reduce damage caused by voltage fluctuations

8. Standard slot structure, easy and efficient insertion and replacement

9. TEL AP9Z-2033A supports stable bus communication with the main control board

10. Channel independent circuit, single channel failure is not likely to affect overall operation

11. Strict component screening, suitable for long-term uninterrupted operation of production lines

12. Gold finger gold-plated treatment, continuous insertion, stable and reliable contact

13. Compact board structure, saving installation space inside the equipment

14. Standardize signal definition to reduce the difficulty of debugging and wiring

15. Dustproof and moisture-proof design, suitable for semiconductor clean room environment

The TEL AP9Z-2033A input/output module is a specialized signal exchange board for Tokyo Electronic Semiconductor Equipment, with strong operational stability.

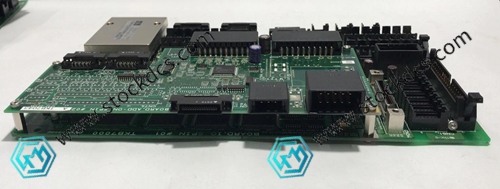

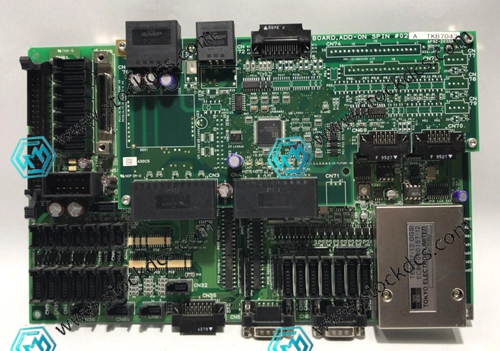

Product imag
