 Introduction

TEL 3M80-003135-13 Printed Circuit Board Adaptation Semiconductor Etching Equipment Signal Transmission and Logic Control

Multi layer precision wiring with low loss in high-speed signal transmission

2. Precise impedance control to eliminate signal crosstalk and ensure process stability

3. Thickened gold-plated solder pads are resistant to oxidation and are less prone to virtual soldering after long-term use

4-layer geological isolation significantly reduces cavity RF interference

5 high temperature resistant specialized substrates suitable for dust-free clean workshop environments

6 standard board specifications, convenient operation for inserting and replacing shelves

More than 7 sets of reserved test points for efficient fault detection and maintenance

8 large-area copper laying auxiliary components for heat dissipation to reduce high temperature faults

9. Partition layout of strong and weak current lines to prevent mutual influence between circuits

10 high-density microporous wiring with high integration, saving internal space of equipment

11 Reinforced Plate Seismic Dynamic Adaptation Production Line Continuous Mass Production Operation

12 original factory standard pin interface perfectly matches TEL equipment

13. Improve insulation protection to effectively avoid damage to components caused by short circuits in power lines

14. Chemical resistant cleaning and adaptation equipment for daily maintenance of the board surface

15. Compatible with various wafer processing equipment for etching deposition film processing

TEL 3M80-003135-13 printed circuit board has precise wiring and excellent anti-interference performance, which can stably support long-term continuous production of semiconductor equipment

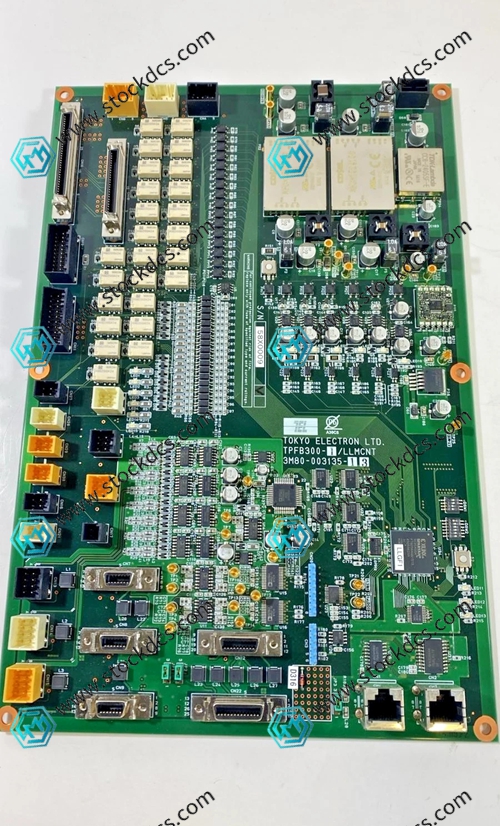

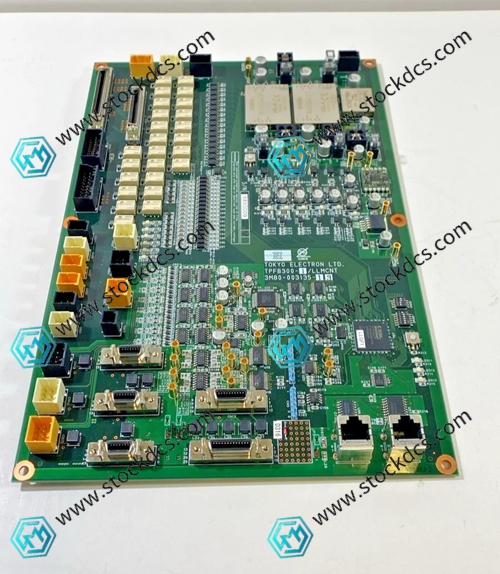

Product imag
