RENSHAW M-5225-0521-02 Parallel Interface Board

RENSHAW M-5225-0521-02 Parallel Interface Board

 Introduction

#RENSHAW M-5225-0521-02 Parallel Interface Board

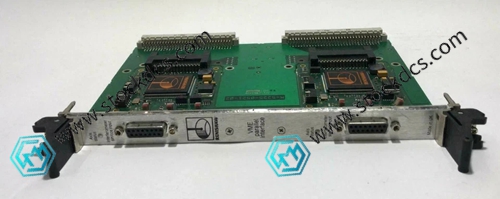

RENSHAW M-5225-0521-02 is a signal adapter board for grating reading heads, used for parallel transmission of position signals in machine tool CNC systems.

1. Compatible with Renishaw grating system, M-5225-0521-02 line matching

2. Synchronized transmission of multiple parallel signals with low position feedback delay

3. Signal isolation circuit, shielding machine tool servo electromagnetic interference

4. Gold plated signal contacts, stable contact without losing pulse after long-term plugging and unplugging

5. Compatible with incremental grating reading heads, precise subdivision signal conversion

6. Overvoltage and static protection, protecting gratings and CNC motherboards

7. Strong and weak current zoning routing to reduce pulse signal crosstalk distortion

8. Industrial temperature resistant substrate, stable operation under high and low temperature conditions in the workshop

9. Standard slot direct insertion structure, easy and fast disassembly and replacement

10. Support centralized conversion of multi axis grating signals, with simple wiring

11. Real time pulse self-test for quick troubleshooting of wire breakage and contact faults

12. Low pulse loss ensures the repeatability accuracy of machine tool positioning

13. Compact board body, easy to install in narrow space of control cabinet

14. Seismic reinforcement hole position, equipment cutting vibration without displacement parameters

15. Factory pulse full channel detection, unified output performance

In summary, the RENSHAW M-5225-0521-02 parallel interface board has stable signal transmission and strong anti-interference ability, making it a core adapter spare for precision machining machine tool grating detection.
