 Introduction

#TEL 2L80-000952-V2 RF Filter

TEL 2L80-000952-V2 is a specialized RF filtering accessory for Tokyo Electronic Semiconductor Etching and Deposition Equipment, which purifies RF signals and ensures process stability.

1. Compatible with TEL semiconductor machine, matched with 2L80-000952-V2 RF circuit

2. Low insertion loss, small transmission loss of target RF signal

3. Out of band high suppression, filtering out clutter and harmonic interference signals

4. Standard 50 Ω impedance, RF circuit matching without reflection

5. Metal shielding shell to isolate electromagnetic interference from the cavity

6. Tolerate high-frequency power of the process and work for a long time without failure

7. Sealed dust-proof structure, suitable for dust-free clean workshops

8. Wide temperature stability characteristics, unchanged performance under high and low temperature conditions of the cavity

9. Gold plated RF terminal, stable connection without signal jump

10. Suppress RF crosstalk and protect machine sensors and control boards

11. Small and compact shell, easy to install in narrow space of cabinet

12. Anti vibration structure, equipment operation vibration does not deviate parameters

13. Integrated design with no need for additional debugging or calibration

14. Multiple insulation protection to eliminate radio frequency leakage hazards

15. Factory RF full band testing with uniform filtering performance

Overall, TEL 2L80-000952-V2 RF filter has strong filtering effect, accurate impedance matching, and can purify RF power output signals. It is an essential RF spare part for semiconductor thin film process machines.

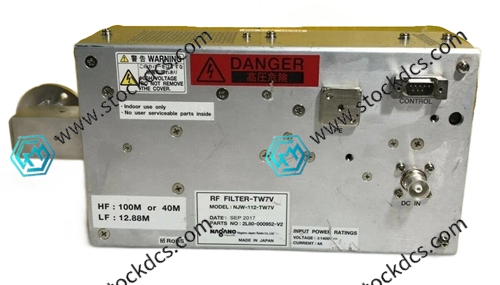

Product imag
