SIEMENS 10849577-K22MP Single Board Computer Module

SIEMENS 10849577-K22MP Single Board Computer Module

Product Details Introduction

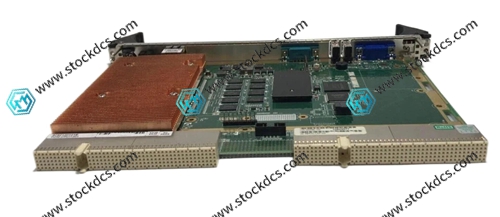

SIEMENS 10849577-K22MP Industrial Control Single Board Computer

This board is a Siemens medical/precision industrial control dedicated plug-in CPU motherboard, commonly used for main control operations in imaging equipment and high-end automation equipment.

1. Equipped with an embedded industrial processor, optimized for long-term uninterrupted computing and resistant to load fluctuations

2. Onboard board mounted industrial DDR memory, with a welding structure to prevent vibration and detachment, suitable for harsh working conditions in vehicle/computer rooms

3. Built in solid-state CF card slot, no mechanical hard drive, dustproof and shock resistant, system firmware fixed storage

4. Integrate multiple RS232/RS422 serial ports to interface with on-site sensors and drive module data exchange

5. Dual independent Gigabit Ethernet, supporting dual channel redundant communication, maintaining device operation even if one channel is disconnected

6. On board custom backplane bus interface, in situ direct insertion into the motherboard, interchangeable with K series specifications

7. Equipped with a hardware watchdog circuit, the program automatically resets and restarts when it crashes, avoiding machine shutdown faults

8. Full board three anti spray PCB, moisture-proof, oil resistant, and resistant to electromagnetic interference in the computer room

9. Onboard multi-channel DC-DC stabilized power supply, adapted to cabinet voltage fluctuations, with high power supply stability

10. Front status indicator light, displaying power, communication, operation, and fault status in different zones

11. Support customized embedded systems, original factory pre installed exclusive drivers, replacement without reprogramming

12. Compact card insertion specifications, standard rack slot installation, quick disassembly and easy on-site maintenance

13. Built in multiple IO control circuits, balancing data acquisition and device logic control functions

14. Wide temperature component selection, continuous full load stable operation in 0-65 ℃ environment

15. Common original spare parts for Siemens imaging equipment and high-end industrial testing equipment

10849577-K22MP is the core computing control board of the entire device.
