TEL Tokyo Electron 1181-000540-13 restriction board

TEL Tokyo Electron 1181-000540-13 restriction board

Product Details Introduction

The TEL Tokyo Electron 1181-000540-13 limiter board is an electronic functional module used in TEL semiconductor manufacturing equipment, mainly responsible for safety functions such as signal limitation, protection, and level control. This board is usually integrated into critical process systems to protect the main control system and sensitive components from abnormal voltage or signal interference.

1、 Basic Information

Product Name: Limiting Plate/Current Limiting Plate

Model: 1181-000540-13

Manufacturer: Tokyo Electron Ltd. (TEL)

Component type: Printed Circuit Board (PCB)

Function category: Signal restriction and protection module

2、 Main functions

Voltage/current limitation

Prevent input signals from exceeding the set threshold and protect the main control circuit or sensitive components;

Suppress sudden waves, surges, or external interference signals.

Signal level matching

Implement electrical isolation and level conversion between different subsystems;

Ensure the stability and compatibility of the overall signal transmission of the system.

Equipment operation protection

Automatically interrupt or limit signals when the device is in an abnormal state (such as short circuit, overload);

Avoid damaging the core control module or expensive components.

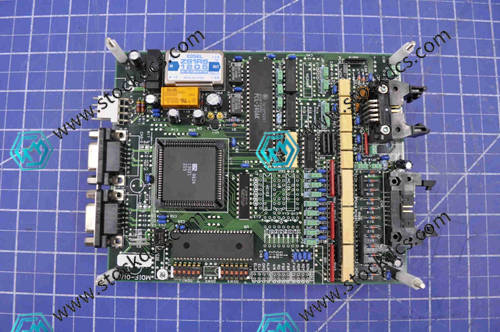

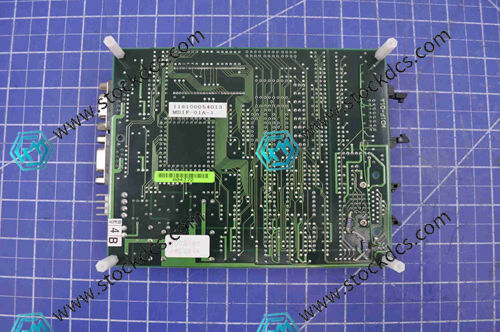

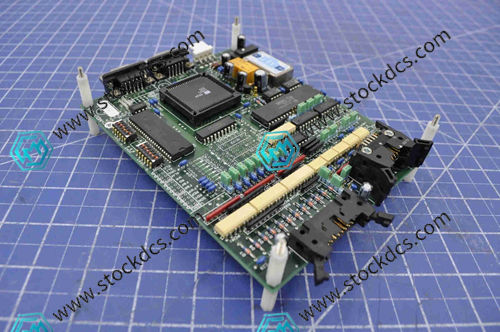

Product imag
