TEL Tokyo Electron CPC-T0033A-12 Input/Output Module

TEL Tokyo Electron CPC-T0033A-12 Input/Output Module

Product Details Introduction

1、 Basic Information

Product model: CPC-T0033A-12

Product Name: Input/Output Module

Manufacturer: Tokyo Electron Limited (TEL)

Product Category: I/O Interface Board/Control Expansion Module

Revision version: -12 represents the 12th edition of this model, adapted to specific device configurations or software versions

2、 Main functions

Functional category description

Digital input receives switch signals, such as limit switches, sensors, button status, etc

Digital output controls the on/off status of actuators such as solenoid valves, relays, indicator lights, etc

Partial versions of the analog interface (depending on configuration) may support analog input/output for collecting signals such as voltage, current, temperature, etc

Signal isolation and buffering provide electrical isolation and signal stability, avoiding interference between devices

The system communication interface is connected to the main control unit to achieve real-time data transmission and control command response

3、 Application scenarios

CPC-T0033A-12 is widely used in various semiconductor devices of TEL to achieve unified management and execution control of device signals. It is commonly used in:

Photolithography pre-processing and post-processing equipment (such as ACT series):

Control the developing arm, sensor feedback, liquid control valve, lifting mechanism, etc

CVD/Etch system:

Receive signals such as pressure, vacuum, gas flow, etc., and control switch components and auxiliary mechanisms

Transfer Modules:

Manage key action signals such as handling robotic arm, turntable limit, door lock control, etc

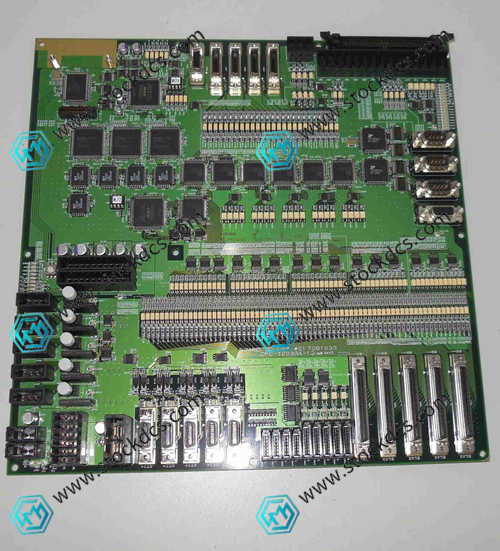

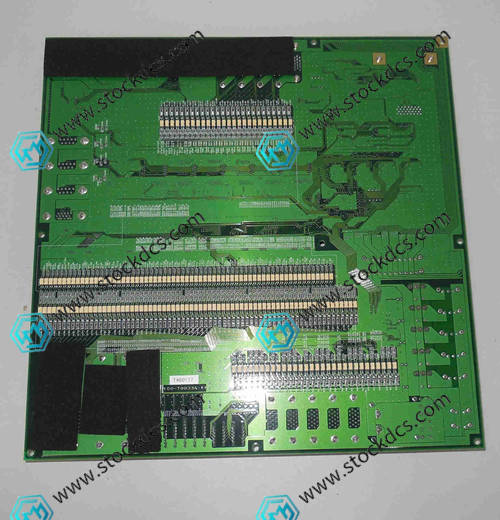

Product imag
