TEL Tokyo Electron 1181-000828-12 Motor Distribution Board

TEL Tokyo Electron 1181-000828-12 Motor Distribution Board

Product Details Introduction

TEL Tokyo Electron 1181-000828-12 Motor Distribution Board - Product Application Fields

1. Multi motor control and distribution

This distribution board is used to manage the power and control signals of multiple motors, achieving unified scheduling and distribution control of multiple moving parts in the equipment (such as pumps, fans, slide tables, rotating motors, etc.).

2. Semiconductor equipment driver system

Widely used in TEL's coating and developing machines, cleaning equipment, etching machines, etc., as the core control interface of the motor drive system, it is used to connect and distribute control signals from the main control unit (such as controller or driver).

3. Interface of automation control system

As a part of the equipment automation system, this board supports receiving instructions from the upper computer or PLC, distributing and executing them according to the motor channel, and feeding back the motor operating status to the main control system.

4. Fault detection and interlocking control

Capable of real-time monitoring of the operating status of each motor, providing feedback on overload, disconnection, overheating, and triggering fault interlocking or alarm mechanisms to ensure stable system operation.

5. Equipment maintenance and module replacement

Adopting standardized modular design, it can be used for equipment maintenance and rapid replacement, improving maintenance efficiency and reducing equipment downtime. It is one of the important spare parts in semiconductor manufacturing equipment.

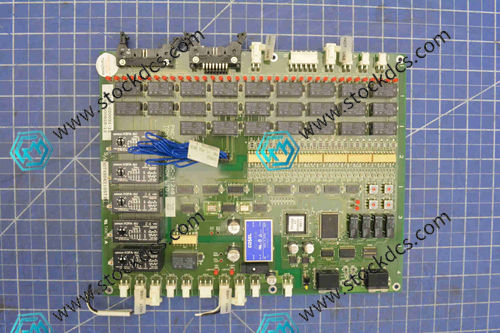

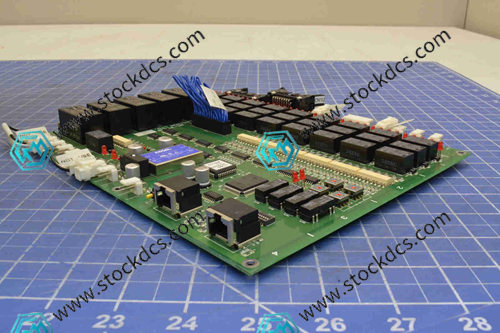

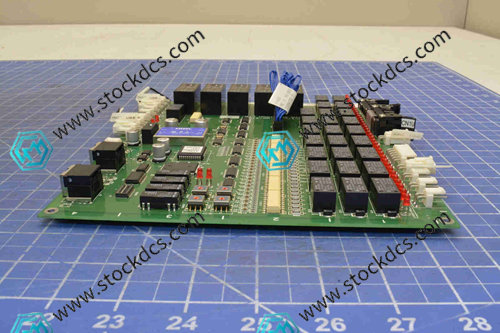

Product imag
