TEL Tokyo Electron 2981-600328-11 DC Power Supply Branch Board

TEL Tokyo Electron 2981-600328-11 DC Power Supply Branch Board

Product Details Introduction

Product model: TEL Tokyo Electron 2981-600328-11

Product type: DC Power Branch Board

Manufacturer: Tokyo Electron Ltd

1、 Product Function Description

This module is a circuit board for DC power supply branching, mainly used to split multiple DC voltage outputs from the main power input for use by multiple functional modules inside the device.

The main functions include:

DC power input reception

Receive DC voltage provided by the main power supply system of the receiving device (such as+24V,+12V, etc.)

Multi channel power distribution

Distribute power to multiple target subsystems, including control modules, drive modules, sensors, etc

Protection and stability function

The board usually includes current protection (such as fuses), filters, or power status detection functions to ensure stable and safe output power supply.

2、 Typical application scenarios

The 2981-600328-11 DC power branch board is mainly used in various semiconductor devices of Tokyo Electron, including:

ACT series cleaning equipment

Models such as ACT 8, ACT 12, ACT 300, etc

Power supply for fluid systems (pumps, valves), drying fans, heaters, and other components in control equipment

CVD/Etch series equipment

Undertake power distribution tasks in cavity control, electrical interlocking, and safety control systems

Modular maintenance of equipment

As a standard power distribution board, it has the design features of being replaceable and hot swappable, which is conducive to equipment maintenance and quick replacement

3、 Product characteristics (comprehensive summary)

Support multiple DC voltage outputs (depending on the version)

Usually equipped with pluggable ports and cable connectors

Onboard may integrate current protection and voltage indicator lights

Installed at the rear of the equipment or in the power compartment

Improve the reliability and maintainability of system power supply

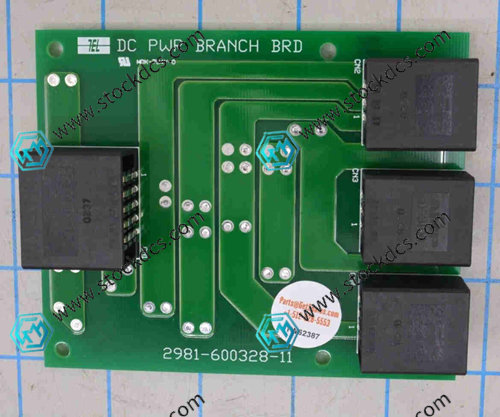

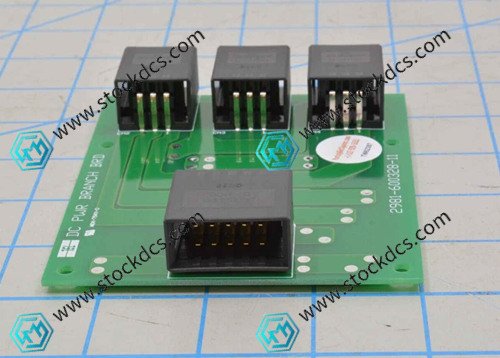

Product imag
