Product Details Introduction

1、 Basic Information

Product model: MTL5516C

Manufacturer: MTL Instruments (now Eaton MTL)

Product type: Detector Interface Module

Main purpose: Connect and interface fire, gas, or safety detectors to achieve safe transmission and isolation of detector signals

2、 Function Description

Used to convert detector signals into signals that can be recognized by standard control systems

Realize electrical isolation, protect control systems and detector safety

Support Intrinsic Safety design, suitable for hazardous area applications

Supports multiple types of detector signal inputs, with strong compatibility

Provide fault detection and status indication functions for easy maintenance and diagnosis

3、 Technical parameters

Number of channels: Single channel detector interface

Input type: Supports sensor signals such as fire detectors and gas detectors

Output signal: switch or analog signal that meets industrial standards

Working voltage: generally 24V DC (to be confirmed according to actual system specifications)

Security certification:

Compliant with intrinsic safety standards (such as ATEX, IECEx)

Suitable for hazardous areas 0, 1, and 2 environments

Response time: Fast response, ensuring timely safety monitoring

Working temperature range: -40 ℃ to+70 ℃

4、 Installation and Interface

Installation method: DIN rail installation, convenient for industrial site use

Terminal block: screw terminal design, suitable for various cable diameters

Structural design: Compact, space saving, convenient for cabinet layout

Status indication: Integrated LED indicator light, displaying power status and fault status

5、 Application scenarios

Fire and gas monitoring system in petroleum and chemical plant areas

Interface for hazardous environment detectors in the natural gas and petrochemical industries

Mining safety monitoring equipment

Any industrial control system that requires intrinsic safety and remote detector connection

6、 Advantages and Characteristics

High reliability ensures accurate transmission of detection signals

Strong electrical isolation to protect system safety

Compliant with strict safety standards and suitable for harsh environments

Easy installation and maintenance, improve system availability

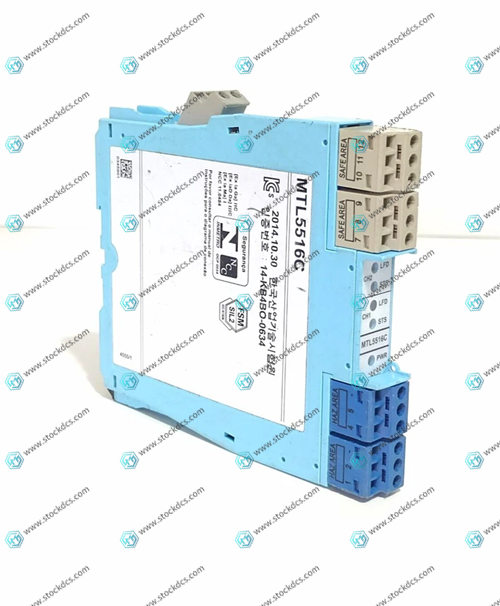

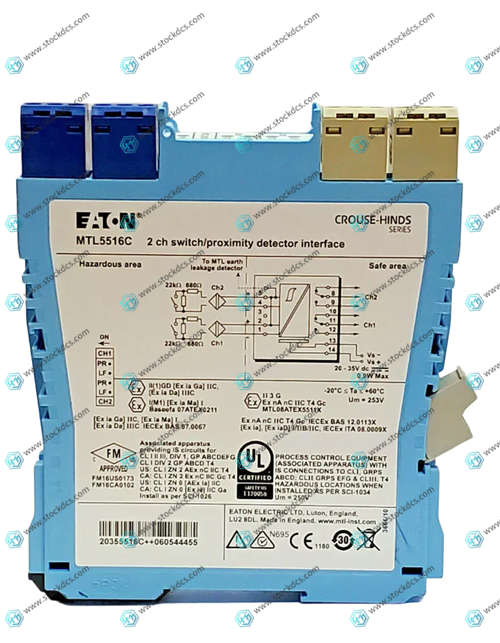

Product imag
