MTL MTL5544 Safety Barrier

MTL MTL5544 Safety Barrier

Product Details Introduction

1、 Basic Information

Product model: MTL5544

Manufacturer: MTL Instruments (now Eaton MTL brand)

Product type: Safety Barrier/Intrinsic Safety Barrier

Application field: Used for electrical signal isolation and intrinsic safety protection in explosion-proof areas, ensuring the safety of equipment and personnel

2、 Function Description

Main functions:

Convert high-energy signals into Intrinsic Safety (IS) signals

Limit the current and voltage passing through the circuit to prevent ignition of flammable gases or dust in hazardous environments

Implement secure isolation to protect on-site instruments and control systems

Protection method:

Current limitation and energy limitation

Overvoltage and short circuit protection

Fault safety design, automatically disconnecting or limiting energy output in case of malfunction

3、 Technical parameters

Number of channels: Single channel safety barrier

Input voltage: usually supports 0~30 V DC input

Maximum current limit: approximately 100 mA (specific value depends on product specifications)

Working temperature range: -40 ° C to+70 ° C

Certification standards:

Compliant with international explosion-proof certification standards such as ATEX and IECEx

Suitable for hazardous areas 0, 1, and 2 environments

Isolation voltage: High voltage isolation ensures safe isolation between the control system and the hazardous area

Response time: Fast response, ensuring real-time security protection

4、 Installation and wiring

Installation method: DIN rail installation, convenient for fast wiring and maintenance on industrial sites

Wiring terminal: screw terminal, compatible with standard industrial cables

Size specifications: Compact design, small footprint, convenient for cabinet layout

5、 Typical applications

Process control system for hazardous areas

Safety signal processing for petrochemical plants and natural gas processing plants

Explosion proof instrument signal isolation in pharmaceutical factories

Instrument safety protection for mining and other flammable and explosive environments

Intrinsic safety signal conversion and isolation in automation systems

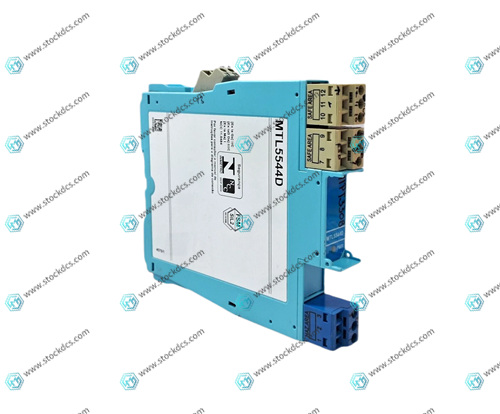

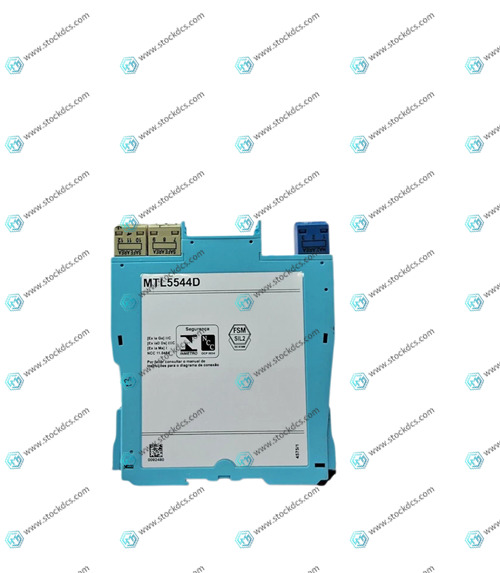

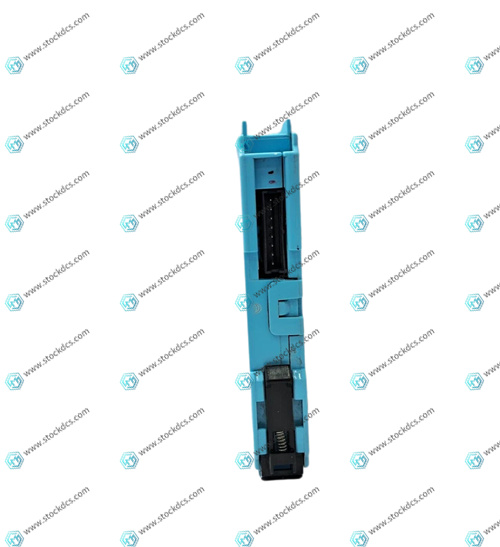

Product imag
