MTL MTL5546 Isolation Driver

MTL MTL5546 Isolation Driver

Product Details Introduction

1、 Basic Information

Product model: MTL5546

Manufacturer: MTL Instruments (now Eaton MTL)

Product type: Isolating Driver/Isolator Amplifier

Application scope: In industrial process control systems, provide signal isolation and drive functions, protect control systems and field equipment

2、 Function Description

Signal isolation: achieving electrical isolation between input and output, eliminating ground loop interference, and improving system anti-interference capability

Signal driven: Enhance signal driven capability to ensure stability of long-distance signal transmission

Compatible with multiple signal types: compatible with standard analog signal inputs (such as 4-20mA, 0-10V, etc.)

Linear amplification: provides precise linear signal transmission, maintaining signal accuracy and integrity

High reliability design: suitable for harsh industrial environments, stable operation

3、 Technical parameters

Input signal range: typically supports 4-20mA current signals and other standard analog signals

Output signal range: 4-20mA or 0-10V analog signal output

Isolation voltage: ≥ 1500Vrms, ensuring complete isolation of input and output

Power supply method: usually 24V DC power supply

Response time: Fast response, meeting real-time control requirements

Working temperature range: -40 ° C to+70 ° C

Installation method: DIN rail installation, convenient for industrial site use

4、 Application Fields

Chemical, petroleum, and natural gas process control systems

Power and Energy Management System

Pharmaceutical and food industry automation

Water treatment and environmental monitoring system

Any industrial automation application that requires signal isolation and amplification protection

5、 Advantages and Characteristics

High electrical isolation performance: effectively preventing ground loops and electromagnetic interference

Strong signal drive: supports long-distance signal transmission, ensuring signal quality

Compact design: saves cabinet space, facilitates installation and maintenance

Compliant with international safety standards: certified by multiple industrial certifications, suitable for complex industrial environments

High reliability: suitable for continuous operation, ensuring system stability

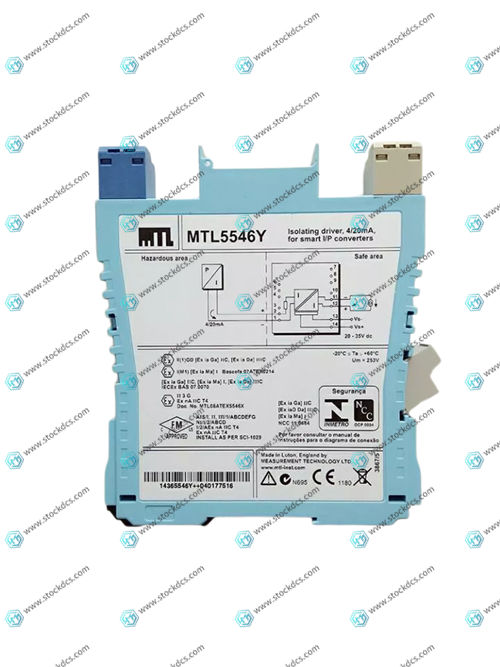

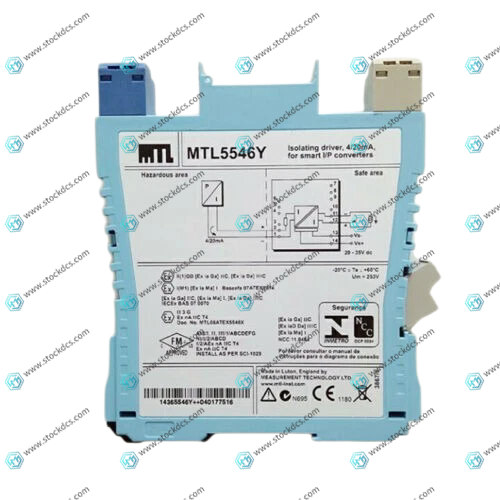

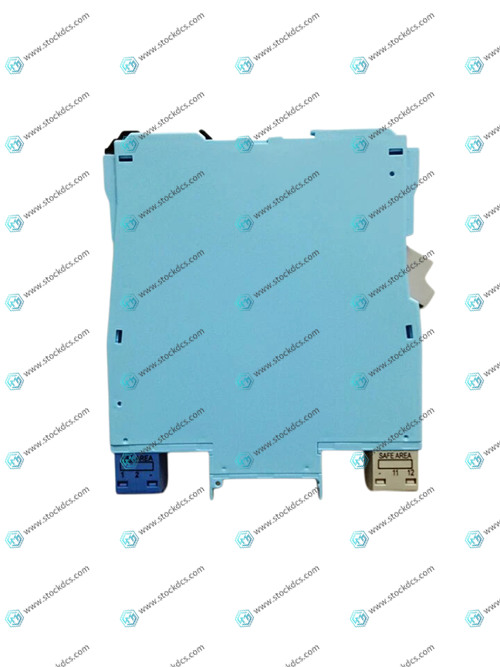

Product imag
