Koyo D4-32TD2 output module

Koyo D4-32TD2 output module

Product Details Introduction

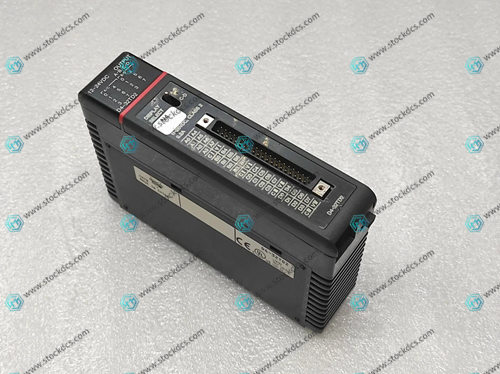

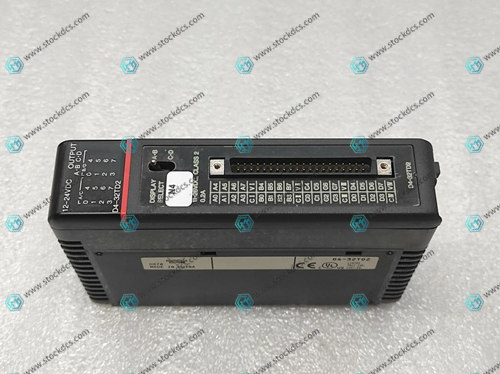

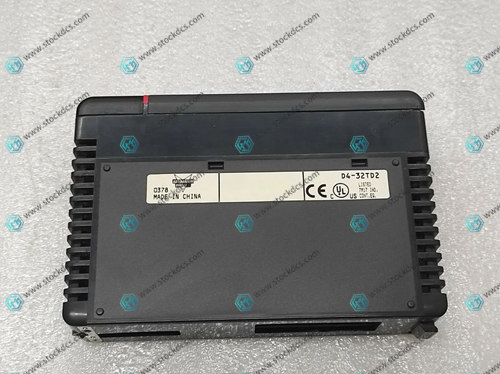

The Koyo D4-32TD2 output module is a digital transistor output module suitable for Koyo DirectLOGIC 405 series PLC systems, used to control external DC loads such as solenoid valves, relays, or other DC drive devices.

1、 Basic Information

Project Content

Brand Koyo (Automation Direct)

Series DirectLOGIC 405 (DL405)

Product model D4-32TD2

Module type: Digital output module (transistor output)

32 channel output points (common anode configuration)

Output type NPN transistor output (Sinking)

Output voltage 5-24 VDC (maximum 30 VDC)

The maximum load current per point is 0.5 A, and the total maximum is 4 A

Response time OFF → ON: 1.0 ms; ON → OFF：1.0 ms

Insulation method optocoupler isolation (logic side and load side)

2、 Technical specifications

Project parameters

Logic voltage 5-24 VDC (input current approximately 7 mA)

Module current consumption is approximately 150 mA (logic power supply)

Output protection with short circuit protection and overload protection

Isolation voltage channel and logic side: 1500 V RMS (optically isolated)

Wiring method: Removable Terminal Block

Installation method: Install on the DL405 base

The module size is consistent with the standard DL405 module
