AE 3054108-11 Control PCB Assembly

AE 3054108-11 Control PCB Assembly

 Introduction

AE 3054108-11 Control PCB Assembly

Product Features:

1. RF power supply main control logic board, responsible for power closed-loop operation and precise regulation of RF output amplitude

2. Onboard signal isolation circuit to resist electromagnetic interference from high-power RF circuits and ensure stable signal acquisition

3. Integrated fault detection circuit, real-time monitoring of reflected power, overheating, arc and other abnormalities, and triggering protection

4. Original factory component welding, subjected to high and low temperature aging tests, suitable for long-term continuous operation of semiconductor production lines

5. Standard slot installation, direct plug and replace on site, no need to modify the internal wiring of the RF power supply

Product Parameters:

1. Material model: 3054108-11

2. Board type: Pinnacle series RF power supply main control PCB

3. Working power supply: Multi channel DC low-voltage power supply

4. Signal interface: analog sampling+machine communication interface

5. Compatible equipment: AE Pinnacle series RF generator

Application fields:

1. RF power control and signal acquisition for semiconductor etching equipment

2. Closed loop regulation of plasma thin film deposition RF power supply

3. Real time monitoring and fault warning of RF output and reflected power

4. Logic operation processing of plasma process arc protection

5. Replacement and maintenance of spare parts for AE Pinnacle RF power supply main control board

This AE 3054108-11 control PCB component is the core control board of Pinnacle RF power supply, which completes power calculation and protection logic, ensures stable plasma process output, and can be quickly replaced on the machine by checking the model.

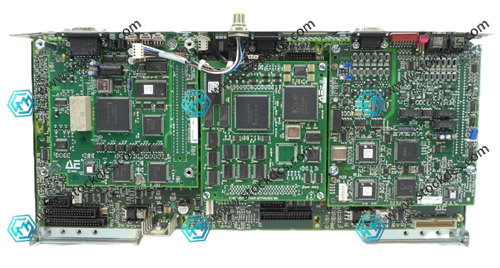

Product imag
