AMAT 9090-00632 Remote PC Computer

AMAT 9090-00632 Remote PC Computer

 Introduction

Colleagues who maintain semiconductor ion implantation machines should be familiar with the AMAT 9090-00632 remote PC computer, which is a supporting upper computer for the AMAT XR80 implantation machine. It is specifically used to control the operation of the machine and retrieve process data, and is a critical control spare part in ion implantation equipment.

Product Features

1. Native compatibility with XR80 ion implantation machine, perfect match between software, hardware and machine system

2. Industrial grade motherboard, resistant to dust and electromagnetic interference, suitable for semiconductor workshop environment

3. Stable operation of machine control software, real-time collection of equipment process and alarm data

4. Comes with a standard communication interface for easy signal interaction with other modules of the machine

5. The overall structure is stable, and on-site disassembly and replacement are simple, reducing downtime for maintenance

Product Specifications

1. Industrial industrial control host architecture, pre installed with AMAT dedicated device operating system

2. Equipped with multiple sets of serial and network ports, supporting communication with multiple components of the machine

3. The working temperature range is 5 ℃~40 ℃, which meets the conditions for use in clean workshops

4. Equipped with data storage function, capable of saving equipment process logs

5. Support remote monitoring of the machine and real-time issuance of operation instructions

Application Areas

1. Overall control of AMAT XR80 ion implantation machine

2. Monitoring of process parameters for semiconductor wafer ion implantation

3. Machine operation log and fault alarm data recording

4. Debugging of ion implantation equipment programs and management of process formulas

5. AMAT ion implantation machine maintenance and replacement spare parts

In general, the AMAT 9090-00632 remote PC computer is the core control unit of the XR80 injection machine. When the machine's industrial control computer fails, it can be replaced directly to quickly restore production on the production line.

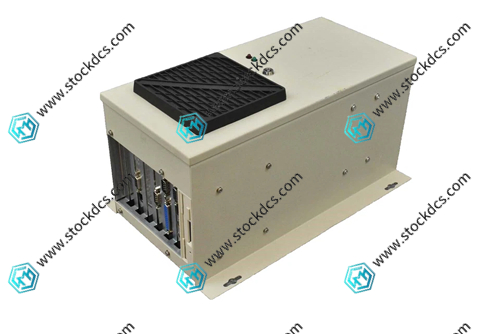

Product imag
