KYOSAN AR10108PA340 Printed Circuit Board

KYOSAN AR10108PA340 Printed Circuit Board

 Introduction

KYOSAN AR10108PA340 Printed Circuit Board

1. Main control PCB board for semiconductor high-voltage power supply system

2. Responsible for high-voltage power signal acquisition and logic control

3. Process voltage and current sampling to achieve closed-loop power regulation

4. Multiple hardware protections, overvoltage, overcurrent, and thermal detection

5. Onboard multiple sets of signal interfaces, connected to power modules

6. Status indicator light, providing visual feedback on the working status of the board

7. Hardware self diagnosis, identifying faults in circuits and components

8. Rack mounted, compatible with KYOSAN high-voltage power supply machine

9. Electrical isolation design to isolate the impact of high voltage interference

10. Industrial grade components with strong stability

11. Wide temperature operation, suitable for semiconductor equipment cabinet environment

12. Anti vibration and anti impact, suitable for long-term continuous work

13. Board anti-corrosion coating, resistant to workshop working conditions

14. Support the output of fault signals as alarms

15. Meet the relevant requirements of the semiconductor equipment industry

The KYOSAN AR10108PA340 printed circuit board is a high-voltage power control board commonly used in semiconductor process equipment power supply control systems.

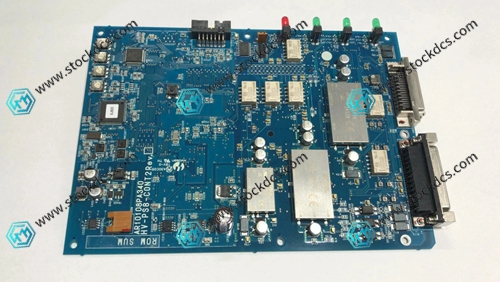

Product imag
