GALIL 2002-0120-002 Controller Module

GALIL 2002-0120-002 Controller Module

 Introduction

GALIL 2002-0120-002 Controller Module

1. DSP motion control architecture, realizing multi axis synchronous precision motion control

2. Support multiple motion modes including point position, electronic cam, and electronic gear

3. Encoder high-speed feedback acquisition, excellent performance in positioning repeatability accuracy

4. Multi channel isolated digital IO, docking sensors and actuators

5. Onboard non-volatile storage, program parameters are saved without loss when powered off

6. Ethernet communication interface for high-speed data exchange on the upper computer

7. Hardware watchdog design, automatic reset for abnormal faults to ensure smooth operation

8. Board type structure, compatible with industrial control chassis standard slot installation

9. Built in motion filtering algorithm effectively suppresses mechanism resonance jitter

10. Industrial wide temperature design to adapt to temperature fluctuations in equipment compartments

11. Anti electromagnetic interference, suitable for semiconductor and automation production line environments

12. Status indicator light group, quickly determine the hardware operation fault status

13. Support GALIL dedicated instruction set, convenient and efficient debugging and configuration

14. Equipped with safety movement protection logic such as limit and zero return to origin

15. Mostly used for motion control of precision automation equipment and detection equipment

The GALIL 2002-0120-002 controller module is a high-precision motion control core board for automation equipment.

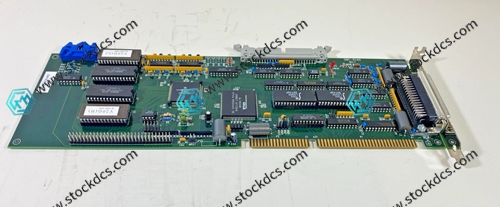

Product imag

ontroller Module
