SWIFT 0100-A355210 Image Processing Board Component

SWIFT 0100-A355210 Image Processing Board Component

 Introduction

SWIFT 0100-A355210 Image Processing Board Component

1. FPGA hardware architecture for real-time image acquisition and preprocessing

2. Multi channel image input interface, compatible with industrial camera signal access

3. Large capacity onboard cache effectively avoids high-speed image frame loss

4. Hardware completes basic operations such as image filtering and contrast correction

5. Standard board specifications, compatible with industrial control chassis slot installation

6. Multi trigger IO, capable of synchronizing timing with external devices

7. High speed data forwarding reduces the computational load on the host CPU

8. Hardware watchdog, automatic reset in abnormal states to ensure smooth operation

9. Anti interference circuit design to adapt to the complex electromagnetic environment of production lines

10. Status indicator light group, quickly determine the working fault status of the board

11. Firmware can be updated and supports iterative upgrades of later functions

12. Compact interface layout, convenient internal wiring and maintenance of equipment

13. Wide temperature working ability, suitable for high and low temperature conditions in equipment cabins

14. Support machine vision defect detection, positioning and measurement services

15. The entire set of components includes boards and matching connectors, ready to use and install

The SWIFT 0100-A355210 image processing board component is the core hardware for image processing in industrial vision systems.

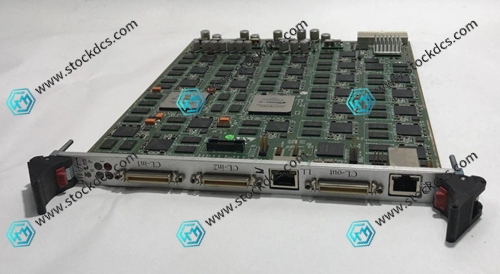

Product imag
