B&R 050005082-04 PC Bus Board

B&R 050005082-04 PC Bus Board

 Introduction

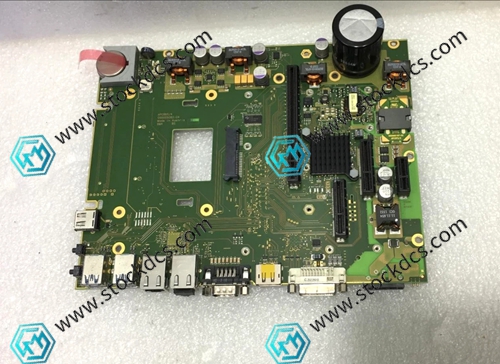

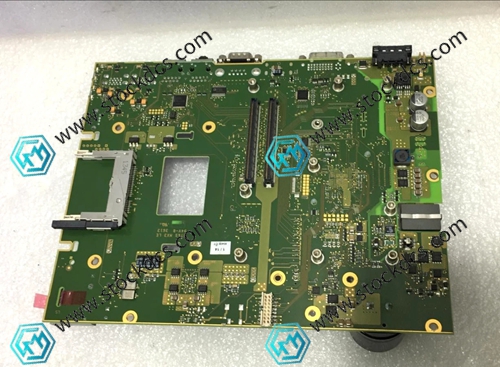

B&R 050005082-04 PC Bus Board

1. As the internal backplane bus carrier of industrial control computers, B&R 050005082-04 carries data interconnection between the board cards

2. Compatible with PC910 series Beijiale industrial control host, with high compatibility for the entire machine

3. Reserve standard PCI slots for installing various communication and acquisition expansion cards

4. The power supply circuit inside the board is regular and stable, providing working power to the mounted board card

5. Strong and weak current zoning routing to avoid interference with communication signals from power supply lines

6. Onboard status detection point, capable of providing feedback on abnormal slot access information

7. Thickened PCB substrate, equipment is less prone to circuit breakage and desoldering in long-term vibration environments

8. Integrated hardware filtering circuit to weaken electromagnetic clutter interference in industrial sites

9. Snap on slot alignment, precise and convenient card insertion and installation alignment

10. Adapt to control cabinet wide temperature conditions, stable transmission in high and low temperature environments without packet loss

11. Single slot independent circuit protection, single board failure will not affect the entire board

12. Compact and reasonable layout, fully utilizing the installation space inside the industrial control chassis

13. Low impedance transmission line, low loss and strong real-time performance for big data transmission

14. Long term full load operation with low heat generation, no need to install additional heat dissipation accessories

15. Factory whole machine on/off and aging detection, low failure rate during machine operation

B&R 050005082-04 is a dedicated industrial control backplane bus substrate that ensures stable communication and power supply connection of various functional boards inside the industrial control computer.
